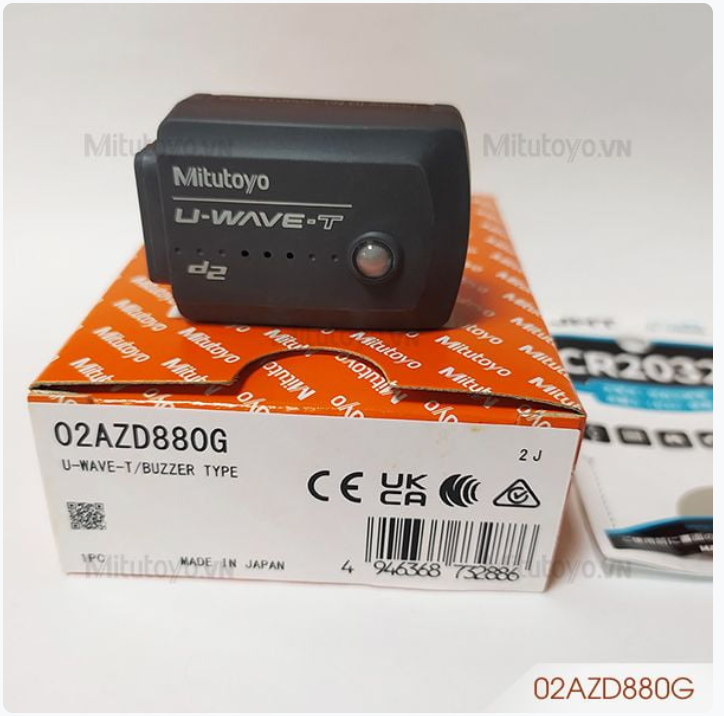

MITUTOYO 02AZD880G Buzzer Type Wireless Transmitter (250kb/s)

Measuring Instruments:

Indicator, 3-Point Inside Micrometer, Carbon Fibre Caliper, Height Gauge, a.s.o

Remarks: Standard

Data reception indication: Buzzer and LED (green, red, orange)

Transmission output: 2,5 mW (4 dBm) or below

Mass: 23 g

Wireless communication protocol: Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)

Power supply: Battery CR2032

Modulation method: DS-SS (Direct Sequence Spread Spectrum)

Communication distance: Approx. 20 m (within visible range)

Communication speed kbps: 250

Communication frequency: 2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)

Communication with measuring tool: Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification

OS compatibility:

Windows® 2000 Professional (≥SP4),

Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit)

Battery life: Approx. 400000 transmissions

Dimensions (WxDxH): 44 x 29.6 x 18.5 mm

Functions: Measurement data transmission (cancel command, error command) and U-WAVE-R sc
