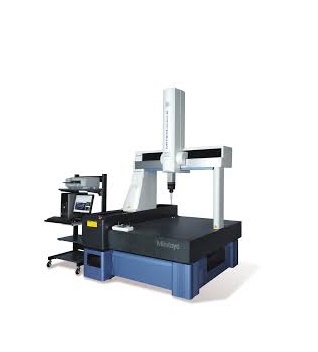

MITUTOYO CRYSTA-Apex S 9108 Coordinate Measuring Machine (900mm, 1000mm, 800mm)
Manufacturer: MITUTOYO Model: CRYSTA-Apex S 9108 P/N: 191-292H-10 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring range:
X-axis 900 mm
Y-axis 1000 mm
Z-axis 800mm
Resolution: 0.0001 mm (0.1 μm)
Guide method: Air bearings on each axis
Drive speed
- CNC MODE: Drive speed 8 - 300mm/s; max. speed: 519 mm/s
- J/S MODE: 0 - 80mm/s (J/S Mode: High Speed); 0 - 3mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)
Max. measuring speed: 3 mm/s
Max. drive acceleration: Each axis: 1,000 mm/s², max. combined acceleration: 1,732 mm/s²
Workpiece
- Maximum height: 1000 mm
- Maximum mass: 1200 kg
Mass (including the control device and installation platform): 2261 kg
Air supply
- Pressure: 0.4 MPa
- Consumption: 60 L/min under normal conditions (air source: 120 L/min)
