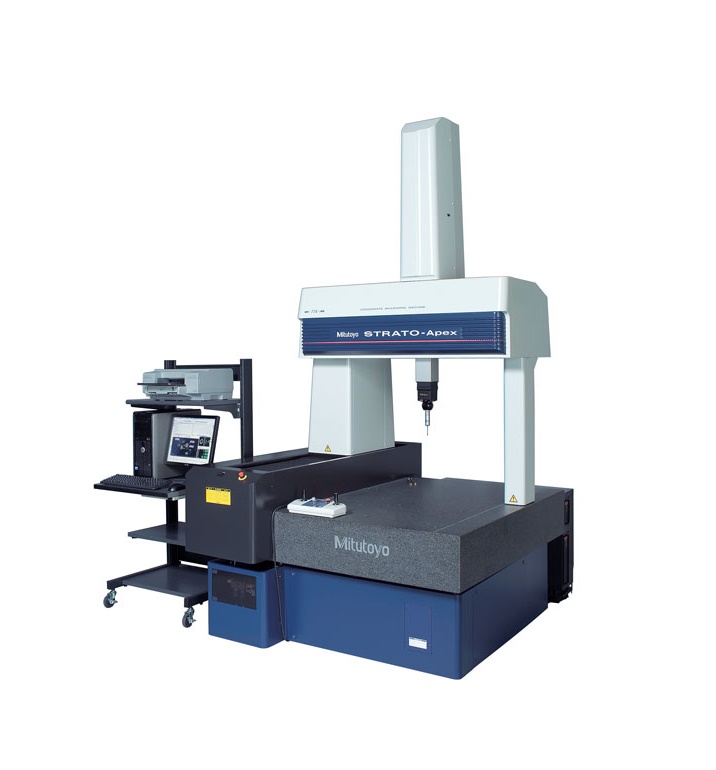

MITUTOYO STRATO-Apex 7106 CNC Coordinate Measuring Machine (700mm 1000mm 600mm)
Manufacturer: MITUTOYO Model: STRATO-Apex 7106 P/N: 355-507 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Type: Moving Bridge Type High Accuracy
X-axis: 27.6" (700mm)
Y-axis: 39.4" (1000mm)
Z-axis: 23.6" (600mm)
Resolution: 0.0000008" (0.00002mm)
Material: Granite
Work Table Size: 33.93" x 67.71" (862mm x 1720mm)
Tapped Insert: M8x1.25mm
Max Workpiece Height: 30.31" (770mm)
Max Workpiece Weight: 1763lbs (800kg)
Mass (including stand and controller): 4806lbs (2180kg)
Machine Dimensions WxDxH: 57.48 x 85.03 x 111.41" (1460 x 2160 x 1460mm)
