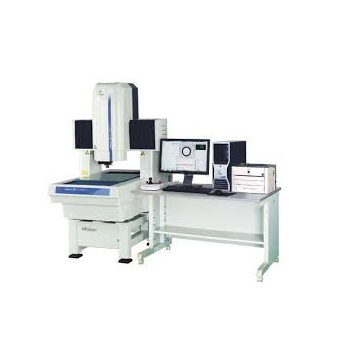

MITUTOYO QVTP404HYPER LAF Vision Measuring System (400 × 400 × 250mm)

Measuring range (X × Y × Z): 15.75"x15.75"x9.84"(400 × 400 × 250mm)

Variable magnification unit: Programmable Power Turret 1X, 2X, 6X

Resolution / scale unit: 0.1μm / reflective-type linear encoder

CCD camera: B & W

Illumination unit:

Coaxial: -

Stage Light: -

Vertical reflected: Color LED

Contour: White LED

Programmable Ring light: Color LED

Measuring accuracy:

E1 X / Y axes: (0.8+2L / 1000) μm

E1 Z axis: (1.5+2L / 1000) μm

E2  X/Y axis: (1.4+3L / 1000) μm

TP: E, X-Y-Z plane: (1.7+3L / 1000) μm

QV Objective lenses: 2.5 QV-HR 2.5x QV-SL2.5x

LAF repeatability: σ : 0.4μm

Stage glass size: 12.41"x21.69"(493 × 551mm)

Maximum stage loading: 66 lbs.(30kg)

Dimensions of main unit: 40.43"x55.39"x70.00"(1027×1407×1778mm)

Mass of main unit (including mounting stand): 1,276 lbs.(579kg)

Optional accessories:

Laser Auto Focus

Rotary Index
