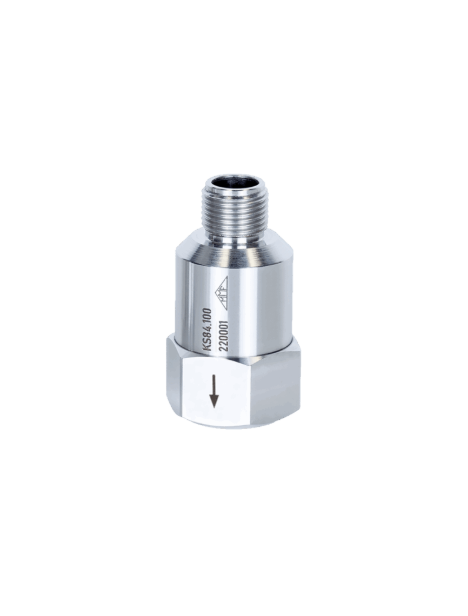

MMF KS84B100 Accelerometer Sensor (100 mV/g, 60 g)

Output: IEPE

Voltage sensitivity: 100 mV/g

Sensitivity tolerance: 5%

Measurement range (±): 60 g

Destruction limit: 5000 g

Transverse sensitivity: < 5%

Lower frequency limit (3 dB): 0.2 Hz

Upper frequency limit (3 dB): 20000 Hz

Lower frequency limit (10%): 0.4 Hz

Upper frequency limit (10%): 14000 Hz

Lower frequency limit (5%): 0.5 Hz

Upper frequency limit (5%): 10000 Hz

Resonant frequency: > 32 kHz

Resonance amplitude: 25 dB

Constant current supply: 2 – 16 mA

Bias voltage at 4 mA: 12.5 – 14 V

Output impedance: < 80 Ω

Residual noise (wide band, RMS): < 200 µg (0.5 – 20000 Hz)

Noise density at 1 Hz: 30 μg/√Hz

Noise density at 10 Hz: 8 μg/√Hz

Noise density at 100 Hz: 1.5 μg/√Hz

Noise density at 1000 Hz: 1 μg/√Hz

Operating temperature range: -40 to 120 °C

Temperature response of sensitivity: see graph

±1% (-10 to 80 °C)

+2/-4% (-40 to 120 °C)

Temperature transient sensitivity: 0.005 m/s²/K

Magnetic field sensitivity: 1 m/s²/T

Weight without cable: 61 g

Case material: Stainless steel

Connector direction: Axial

Connector: Binder 713

Mounting: M8

Isolated mounting: Yes (4 GΩ)

IP rating: IP68
