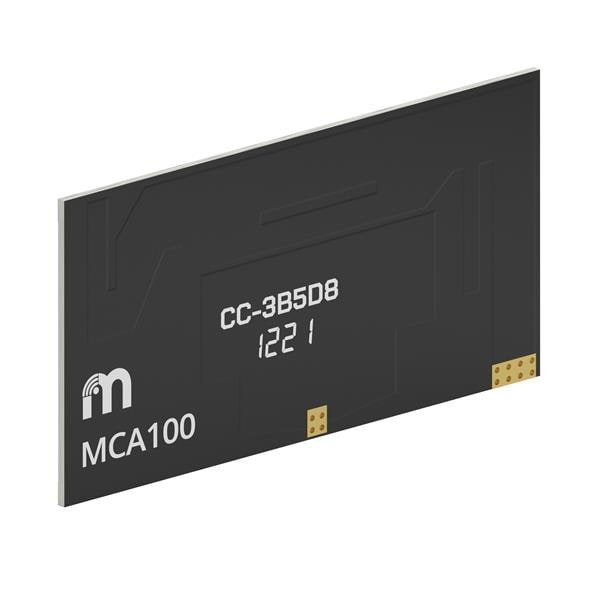

Mobix Labs MCA100 Passive Antenna Ultra Wideband Antenna 617 MHz - 7.125 GHz

Gain: 0.03 dBi to 5.3 dBi

VSWR: 3

Style: Ceramic

Width: 25.5 mm

Height: 0.852 mm

Length: 49 mm

Bandwidth: 6.508 GHz

Frequency: 617 MHz to 7.125 GHz

IP Rating: IP68

Impedance: 50 Ohms

Application: Access Points, Routers, Gateways, Set Top Box, Multi-band Equipment, Appliances, Wireless Devices

Power Rating: 2 W

Qualification: AEC-Q200

Mounting Style: PCB Mount

Frequency Range: 617 MHz to 7.125 GHz

Number of Bands: 1 Band

Center Frequency: 617 MHz, 915 MHz, 2.45 GHz, 5.5 GHz, 6 GHz, 7 GHz

Mechanical Style: Chip

Maximum Frequency: 7.125 GHz

Minimum Frequency: 617 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: ISM, ANT, WiFi, WiFi 802.11, WLAN, WiFi 6, WiFi 6E, WiMAX, WHDMI

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DSRC

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
