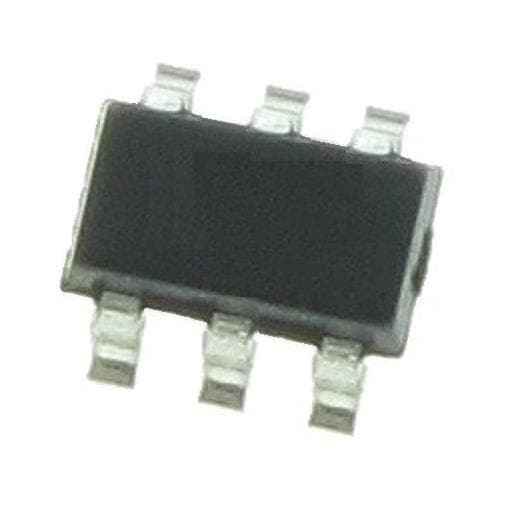

Monolithic Power Systems (MPS) MP4026GJ-Z Off-Line LED Driver Offline PSR LED Controller
Manufacturer: Monolithic Power Systems (MPS) Model: MP4026GJ-Z - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Features: Short Circuit and Thermal Protection
Topology: Flyback
Input Voltage: 12 V to 28 V
Mounting Style: SMD/SMT
Output Current: 350 mA
Output Voltage: Adjustable
Number of Outputs: 1 Output
Number of Channels: 1 Channel
Input Voltage - Max: 28 V
Input Voltage - Min: 12 V
Operating Frequency: 70 kHz
Supply Current - Max: 3 mA
Pd - Power Dissipation: 1.25 W
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
