Applications
Airport, Customs, Train Stations, Shopping Mall, School, Hospital, Hotel, Law Enforcement
Church, Theatre, Museum, Stadium, Factory, Exhibition Center, Government Office, etc.
Product Introduction

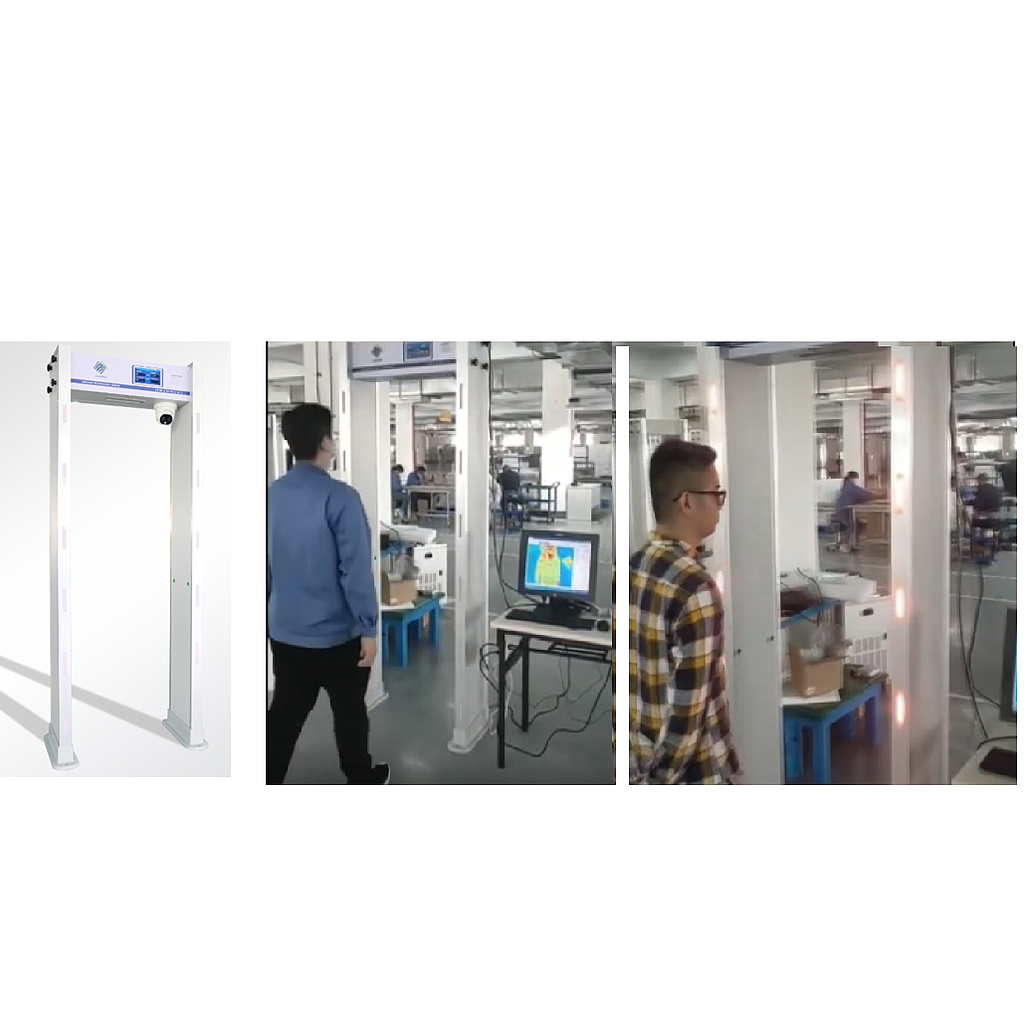

UNX200 is an automatic Infrared Imaging Camera temperature detector and alarming system adopts military-grade infrared technology, which can screen people who pass through the walk-through door frame for non-inductive infrared body temperature. The alarming system will be automatically triggered once a higher body temperature is detected than the pre-setting threshold. It can screen people with fever in large scale, improve the prevention and control efficiency of the epidemic, and greatly reduce the risk of infection
Technical Specifications
lHigh precise body temperature detection and auto alarming, response time < 0.5s
lTemperature accuracy: ±0.3℃, two infrared sensors equips with different height
lSafety temperature threshold with self-calibration( standard: 37.3 °C, adjustable)
lPass through (in & out ) counting, auto alarming with sound andLED lights
lLight weight and strong anti-interference, stable performance
lAutomatic self-calibration, pre-setting the alarm threshold, decrease manual operation and improve efficiency
lPlug and play with modular design parts, easy to install and troubleshoot
lLow rate of false alarm with cutting-edge digital signal processing technology
lOne button operation to restore factory default settings
lInternational A-level measurement capability, stable working
lExtensibility of the integration with Metal Detector, turnstile barrier gate, finger-print access control, CCTV, and ID reader ( Optional)
lNetworking management for multi-terminals with real time monitoring and data retrieving(Optional)
LCD Display | 7”Colors TFT LCD |
Temperature accuracy | ±0.3℃, |
Power consumption | ＜ 15W |
Temp. Detecting Range | 25 ℃~ 43 ℃ |
External Power | AC 110~240V, 50/60HZ |
Net Weight | 45KG |
Gross Weight | 52KG |
Working Environment | No direct sunlight, No wind |
Operating humidity | 99%，non-condensing |
Inner Size | 1983（H）× 702 （W）× 334 （L）（mm） |
Outline size | 2199（H）× 818 （W）× 334 （L）（mm） |
Package Size(2 cartons) | 820*480*260mm (Control Unit) 2340*830*260mm (Frame Panel) |
Certifications | CE, FDA, ISO9001, ISO14001, OSHAS18001, Chinese GB |
