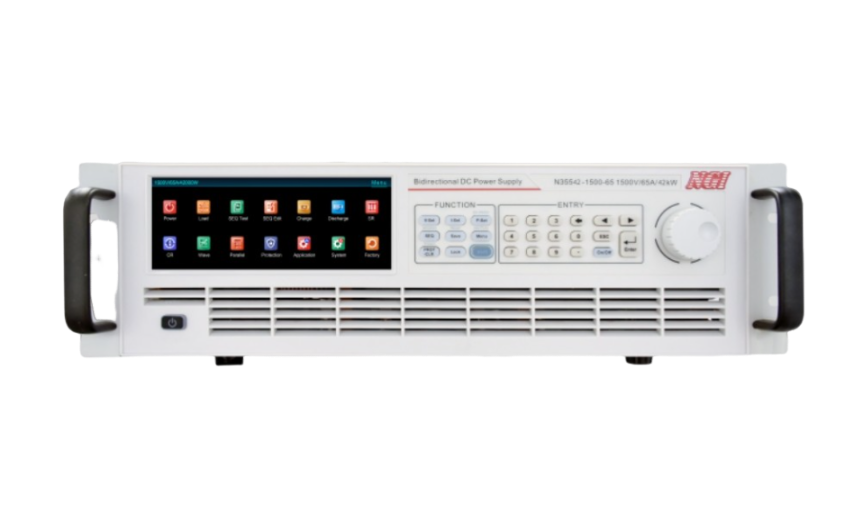

NGI N35500 Bidirectional DC Power Supply (0~1500V, -65A~65A, -42kW~42kW)

Voltage: 0~1500V

Current: -65A~65A

Power: -42kW~42kW

CV Mode

Range: 0~1500V

Setting Resolution: 10mV

Setting Accuracy(23±5°C): ≤0.02%+0.02%F.S.

Voltage Ripple (20Hz~20MHz): ≤3Vp-p; ≤0.4Vrms

CC Mode

Range: -65A~65A

Setting Resolution: 0.11mA

Setting Accuracy(23±5°C): ≤0.1%+0.1%F.S.

Current Ripple (20Hz~20MHz): ≤1.4Ap-p; ≤200mArms

CP Mode

Range: -42kW~42kW

Setting Resolution: 0.1W

Setting Accuracy(23±5°C): 0.1%+0.1%F.S.

Voltage Measurement

Range: 0~1500V

Readback Resolution: 10mV

Readback Accuracy(23±5°C): ≤0.02%+0.02%F.S.

Temperature Coefficient: ≤15ppm/°C

Current Measurement

Range: -65A~65A

Readback Resolution: 0.1mA

Readback Accuracy(23±5°C):≤0.1%+0.1%F.S.

Temperature Coefficient: ≤30ppm/°C

Line Regulation

Voltage: <0.01%F.S.

Current: <0.02%F.S.

Load Regulation

Voltage: <0.01%F.S.

Current: <0.05%F.S.
