6V/±5A/32CH Battery simulator
Voltage accuracy： 0.1mV
Battery Simulator Module Specification
Model: NB101-06-05-A
General Specifications:
Current: ±5A/CH
Voltage: 6V/CH
Power: 30W/CH
Channels: 4CH
CV (Constant Voltage) Mode:
Range: 0-6V
Setting Resolution: 0.01mV
Setting Accuracy (23±5°C): 0.1mV
Readback Resolution: 0.01mV
Readback Accuracy (23±5°C): 0.1mV
Temperature Coefficient (0-40°C): 20ppm/°C
Voltage Ripple Noise: ≤ 2mVrms
CC (Constant Current) Mode:
Range 1:
Range: -5 to 5A
Setting Resolution: 0.1mA
Setting Accuracy (23±5°C): 5mA
Readback Resolution: 0.1mA
Readback Accuracy (23±5°C): 5mA
Range 2:
Range: -1 to 1mA
Setting Resolution: 0.1μA
Setting Accuracy (23±5°C): 1μA
Readback Resolution: 0.1μA
Readback Accuracy (23±5°C): 1μA
General CC:
Temperature Coefficient (0-40°C): 50ppm/°C
Dynamic Characteristics:
Voltage Rise Time: ≤ 40μs (No load/Pure resistive full load, 10%-90%)
Voltage Fall Time: ≤ 100μs (No load/Pure resistive full load, 90%-10%)
Transient Recovery Time: < 100μs
Fault Simulation:
Supportable Functions: Positive and negative short circuit, positive and negative open circuit, polarity reversal simulation.
Other Specifications:
Isolation (output to ground): 2000V DC
Isolation (channel to channel): 500V DC
Working Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Operating Environment: Altitude < 2000m; Humidity 5%-90%RH (no condensation)

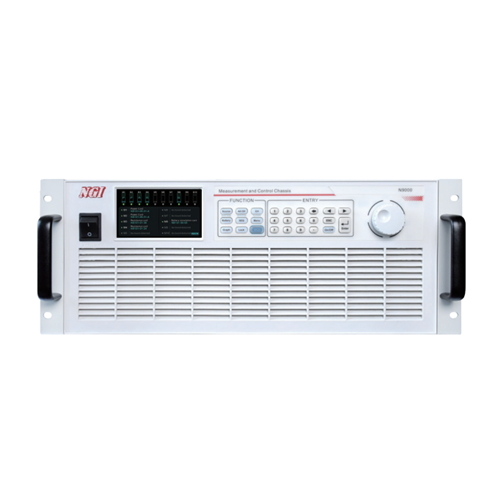

Dimension: Single module single slot (One N9000 chassis supports 9 modules)
