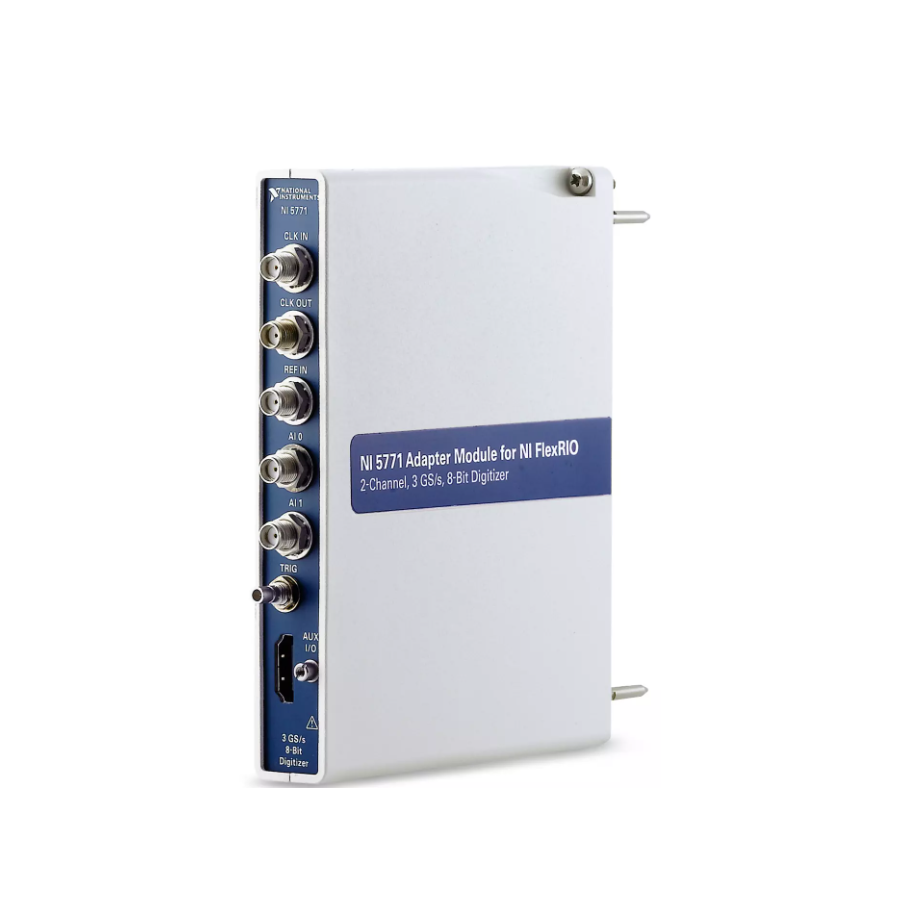

NI NI-5771 Digitizer Adapter Module for FlexRIO (2 Channels, 3 GS/s, DC, Virtex-5 Kintex-7)
Manufacturer: NI Model: NI-5771 P/N: 781419-02 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Number of Voltage Input Channels: 2
Maximum Sample Rate: 3 GS/s
Analog Input Resolution: 8 bits
Analog Input Coupling: DC
Analog Input Bandwidth: 900 MHz
Analog Input Voltage Range: -0.675 V to 0.675 V
Compatible FPGA: Virtex-5 Kintex-7
Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.
Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.
