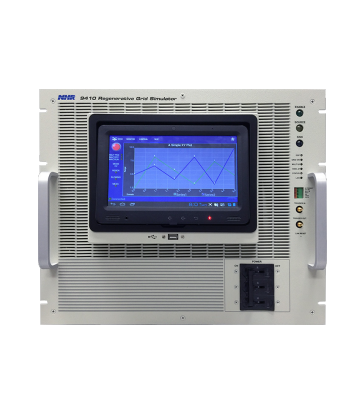

NI NHR 9410-12 Regenerative Grid Simulator

AC Output Ratings

Phases/Output Channels: 1, 2 or 3

Power, Max (1Φ or 3Φ): 12kW/31.5kVA

Current Ranges (RMS per Φ): 6, 30A/Φ

Current Ranges (RMS 1Φ): 18, 90A

Peak Current: 3 x Max RMS

Voltage Ranges L-N: 10 - 175, 350VRMS L-N (Split Phase 250V Max)

Accuracy: 0.2% Set + 0.2% Rng

Resolution: 0.005% Rng

Distortion (THD): <1% @ 50/60Hz, Full power into

resistive load at 480VRMS (L-L)

DC Output Ratings

Power Max (1ch or 3ch): 12kW

Current Ranges (Per Ch.): 60, 30A/CH

Current Ranges (Per Sys.): 18, 90A

Voltage Ranges: 10 - 200, 400VDC

AC & DC Measurements

Voltage Range (LR, HR): 260, 520V Pk

Accuracy (AC RMS): 0.1% Rdg + 0.06% Rng

Accuracy (DC): 0.1% Rdg + 0.1% Rng

Current per Phase (LR, HR): 20, 100A

Accuracy (AC RMS): 0.1% Rdg + 0.1% Rng

Accuracy (DC): 0.2% Rdg + 0.1% Rng High Range, 0.2% Rdg + 0.3% Rng Low Range

Power: Voltage Rng x Current Rng

Additional Measurements: Energy (Ah, kWh, kVAh), AC Crest Factor, AC Power Factor, Waveform Capture

Waveform Digitizer

Data Acquisition: Output Voltage & Current

Sample Rate: 125k Samples/sec

Memory Depth: 64k Samples

Control

Local User Interface: Built-in Touch-Panel and PC-Based software tools including graphical user interface

External System Comm: LAN (Ethernet) supporting SCPI or VXI-11

Drivers: Ni-Compliant LabVIEW Drivers, Enerchron (opt.)

Input Power

Voltage: Universal Input – 380V to 480V ± 10% (L-L, 3 Phase, 50/60Hz)

Efficiency/Power Factor: > 85% / > 0.95

Current per Φ @ 380V: 25A

Current per Φ @ 480V: 24A

Current per Φ @ 480V: 20A
