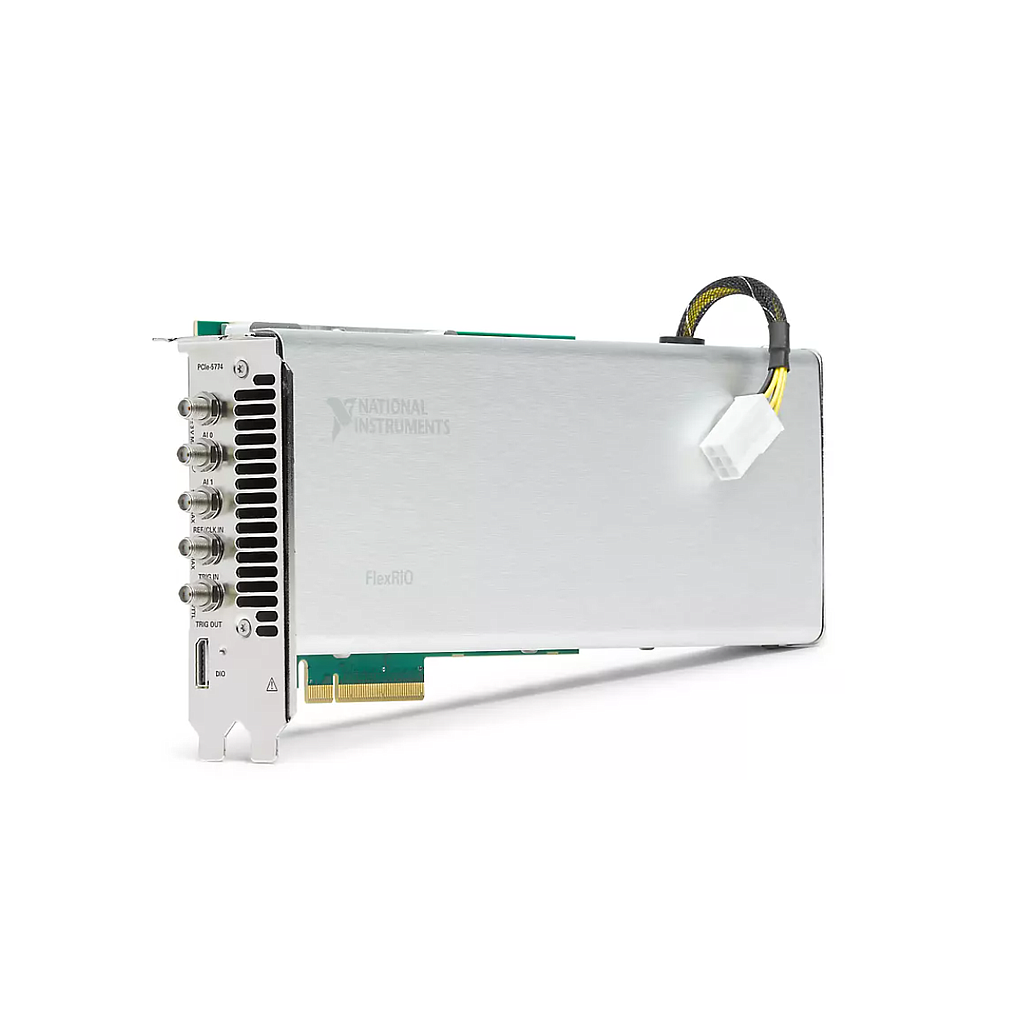

NI PCIe-5774 FlexRIO Digitizer Device (Input 1.6 GHz, Kintex UltraScale KU060, DC, 6.4 GS/s, 2 Channels)
Manufacturer: NI Model: PCIe-5774 P/N: 785650-02 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Analog Input Bandwidth: 1.6 GHz
Maximum Sample Rate: 6.4 GS/s
Dynamic RAM (DRAM): 4 GB
Analog Input Voltage Range: 200 mVpp 1 Vpp
Analog Input Resolution: 12 bits
Number of Voltage Input Channels: 2
FPGA: Kintex UltraScale KU060
Analog Input Coupling: DC
Combines A/D converter technologies with Xilinx FPGAs for PCI applications that demand real-time signal processing and high-performance analog input.
FlexRIO Digitizer Devices feature high-performance analog-to-digital converters with lightweight analog front-ends designed to maximize sample rate, bandwidth, and dynamic range. These devices use FPGAs from Xilinx alongside LabVIEW and Vivado programming options for custom algorithm implementation and real-time signal processing. These devices also feature an auxiliary I/O connector with GPIO for triggering or digital interfacing and the option for high-speed serial communication.
Datasheet
