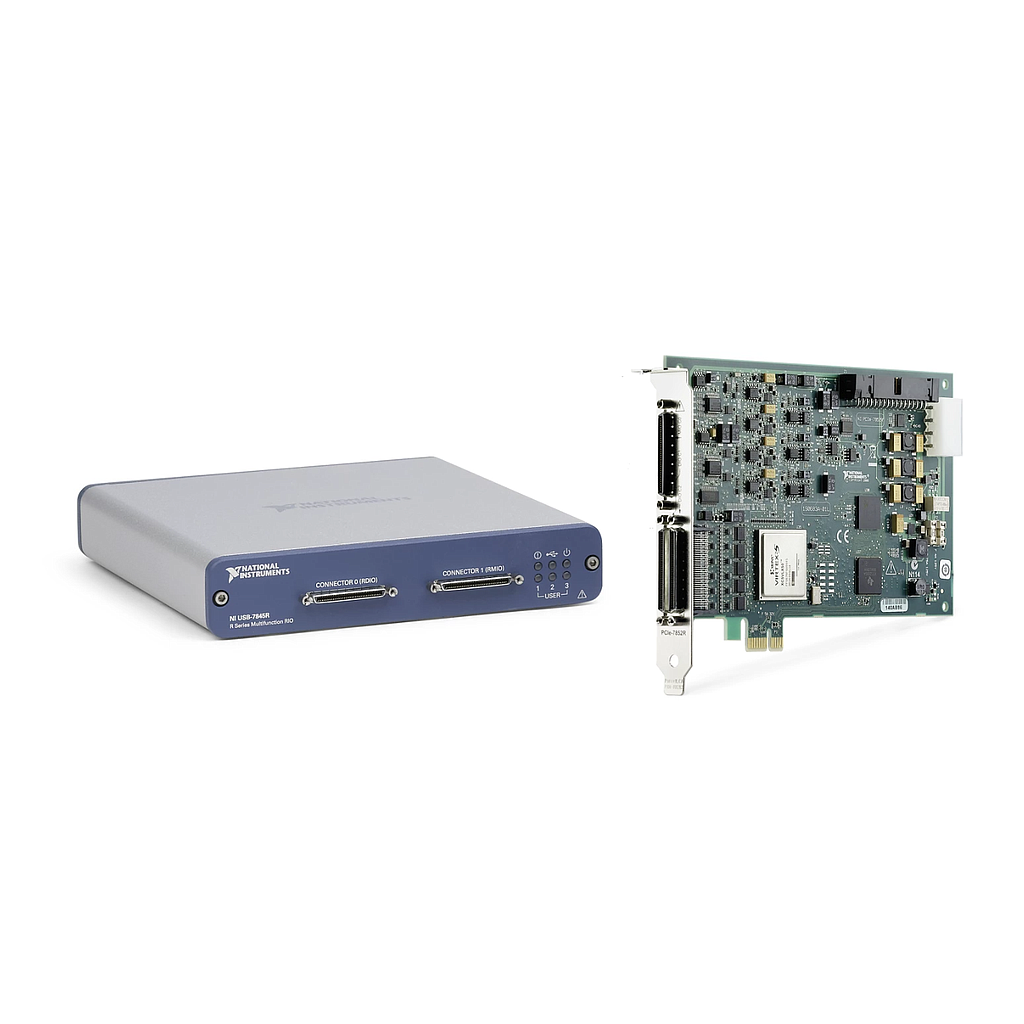

NI PCIe-7852 Multifunction Reconfigurable I/O Device (Virtex-5 LX50, 750 kS/s, -10V ~ 10V)
Manufacturer: NI Model: PCIe-7852 P/N: 781103-01 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Bus Connector: PCI Express
FPGA: Virtex-5 LX50
Maximum Sample Rate: 750 kS/s
Number of Bidirectional Digital Channels: 96
Analog Input Voltage Range: -10 V to 10 V
Digital I/O Logic Levels: 3.3 V 5 V
Maximum Clock Rate : 40 MHz
Enclosed: No
Controls I/O signals and provides a user-programmable FPGA for onboard signal processing and flexible system timing and synchronization.
Multifunction Reconfigurable I/O Devices feature a dedicated A/D converter (ADC) per channel for independent timing and triggering. This design offers specialized functionality such as multirate sampling and individual channel triggering, which are outside the capabilities of typical DAQ hardware. You can customize these devices with the LabVIEW FPGA Module to develop applications requiring precise timing and control such as hardware-in-the-loop (HIL) testing, custom protocol communication, sensor simulation, and high-speed control.
