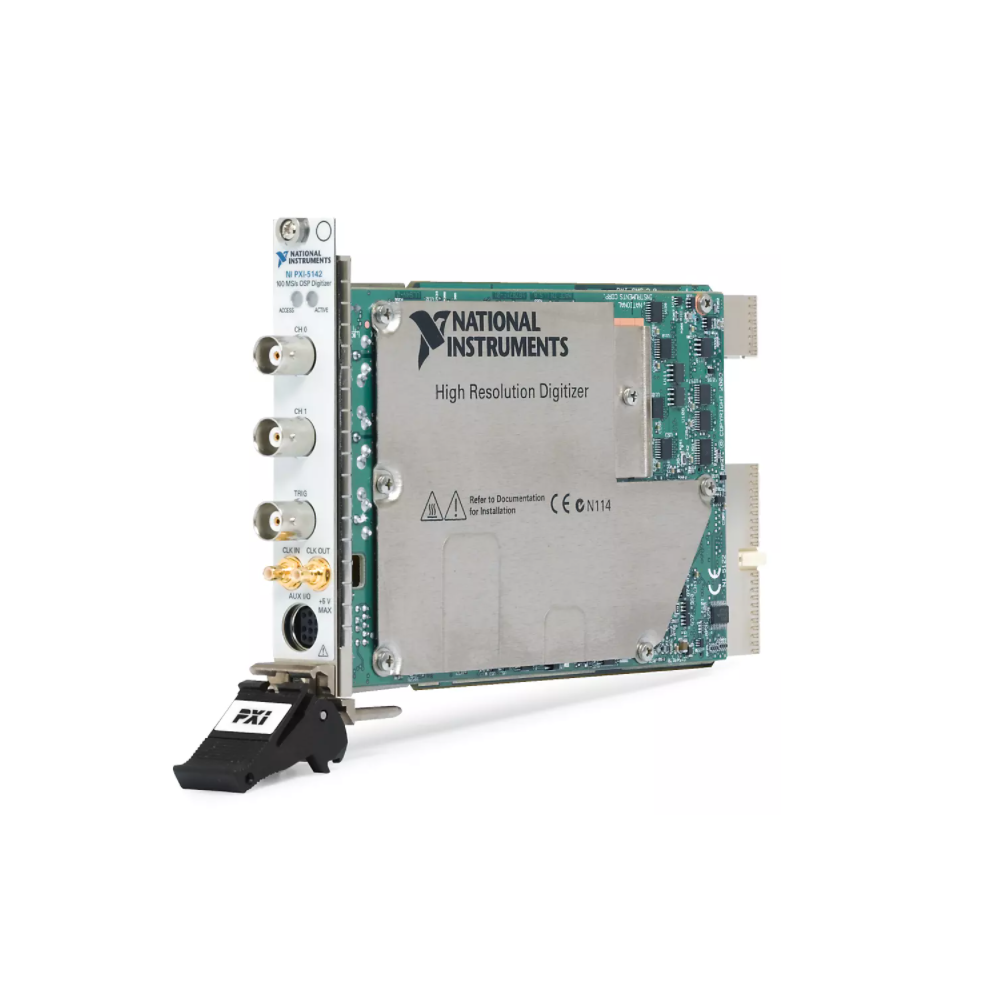

NI PXI-5142 PXI Oscilloscope (100 MS/s, 2 Channel, 256 MB/ch, ±10 V)
Manufacturer: NI Model: PXI-5142 P/N: 779587-02 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Bus Connector: PXI Hybrid
Oscilloscope Maximum Bandwidth: 100 MHz
Maximum Sample Rate: 100 MS/s
Number of Voltage Input Channels: 2
Analog Input Resolution: 14 bits
Oscilloscope Onboard Memory Size: 256 MB/ch
Analog Input Impedance: 50 Ohm 1 MOhm
Analog Input Voltage Range: -10 V to 10 V
CableSense™: No
FPGA: —
Acquires and analyzes time- and frequency‐domain analog signals as part of a PXI system.
PXI Oscilloscopes are flexible, software‐defined instruments that are versatile enough for both time‐ and frequency‐domain measurements and deliver the benefits of the PXI platform. They feature up to eight channels that can sample at speeds up to 12.5 GS/s with 5 GHz of analog bandwidth. Using the PXI platform, you can synchronize multiple oscilloscopes with other instruments at picosecond‐level accuracy for high‐channel‐count and mixed‐signal applications. These instruments also feature numerous triggering modes, deep onboard memory, and a driver software API that includes data streaming and analysis functions.
