NI PXIe-5423 PXI Waveform Generator (1-Channel, ±12V, 128 MB, 40 MHz) | EMIN.ASIA

RF Signal Generators
NI PXIe-5423 PXI Waveform Generator (1-Channel, ±12V, 128 MB, 40 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

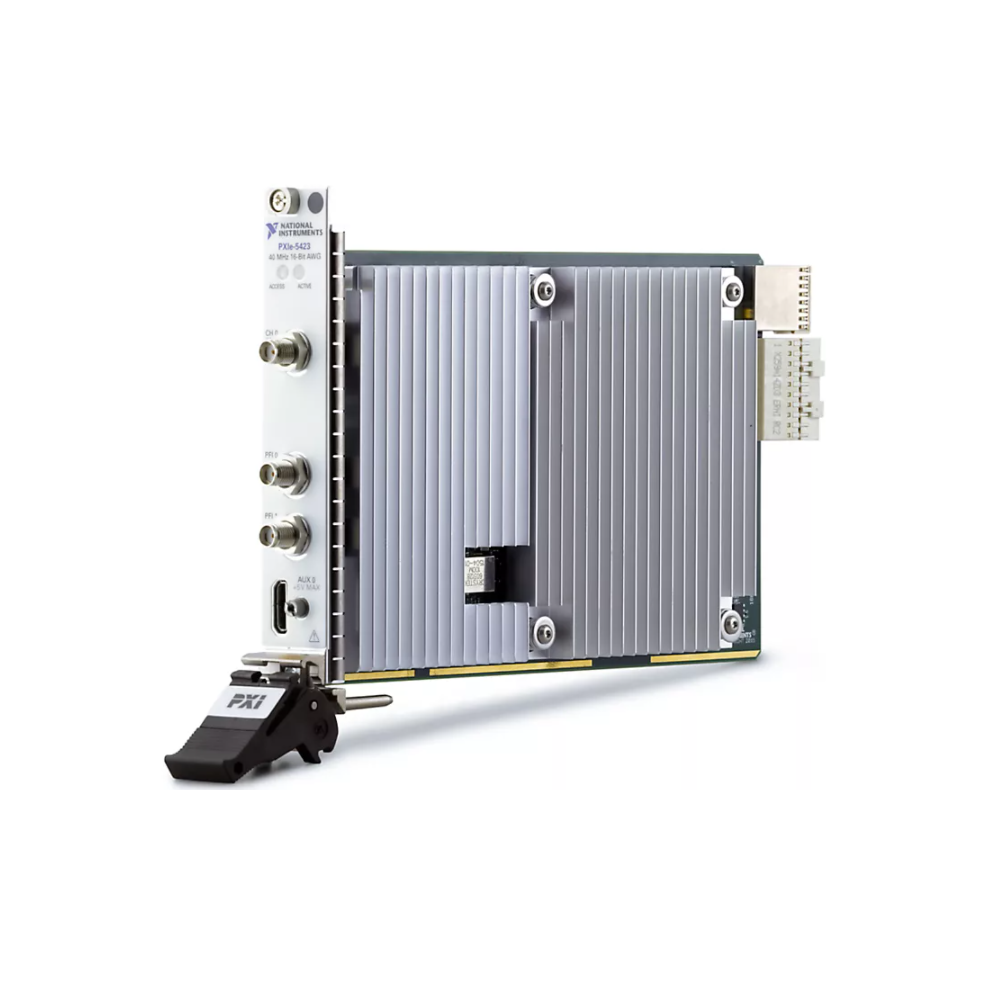

Product image

NI PXIe-5423 PXI Waveform Generator (1-Channel, ±12V, 128 MB, 40 MHz)

ManufacturerNI(View more products from this manufacturer)

ModelPXIe-5423

P/N785115-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Supports Scripting: Yes

Bus Connector: PXIe

Maximum Bandwidth: 40 MHz

Maximum Update Rate: 800 MS/s

Analog Output Resolution: 16 bits

Analog Output Voltage Range: -12 V to 12 V

Analog Output Onboard Memory Size: 128 MB

Number of Output Channels: 1

Supports Arbitrary Waveforms: Yes

RF Signal Generation: No

Supports Digital Upconversion: No

Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.

PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.

Datasheet
