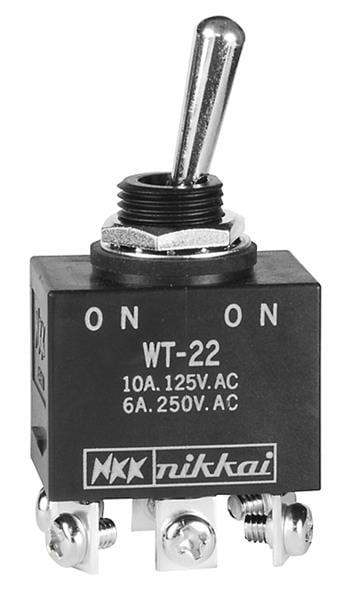

NKK Switches WT22T Environmentally Sealed Toggles ON None ON DPDT Screw Lug Panel Mnt

Name: NKK Switches WT22T Environmentally Sealed Toggles ON None ON DPDT Screw Lug Panel Mnt
Brand: NKK Switches

ModelWT22T

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Life: 15000 Cycle

Actuator: Toggle

IP Rating: IP67

Illuminated: Non-Illuminated

Unit Weight: 5.444 g

Bushing Size: M12

Contact Form: DPDT

REACH - SVHC: Details

Mounting Type: Bushing

Terminal Seal: Epoxy

Actuator Style: Bat

Current Rating: 10 A

Mounting Angle: Vertical

Mounting Style: Panel Mount

Contact Plating: Silver

Switch Function: ON - ON

Contact Material: Brass

Housing Material: Polyamide, Glass Fiber Reinforced

Termination Style: Screw

Voltage Rating AC: 125 VAC

Voltage Rating DC: 30 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
