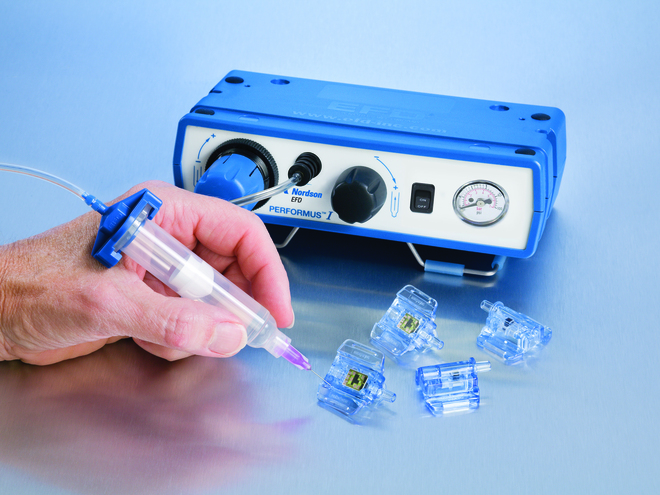

Nordson Performus I Dispenser (0-7 bar)

Cabinet size: 18.3W x 5.1H x 8.6D cm (7.22W x 2.00H x 3.38D")

Weight: 1.0 kg (2.2 lb)

Input AC (to power supply): 100–240 VAC (±10%), ~50/60 Hz, 0.6 A

Output DC (from power supply): 24 VDC, 1.04 A maximum

Internal voltage: 24 VDC

Cycle rate Exceeds: 600 cycles per minute

Foot pedal: Voltage: 24 VDC; Current: 20 mA

Cycle initiate: Foot pedal, finger switch

Input air pressure: 7.0 bar (100 psi) maximum

Air output: 1.0–7.0 bar (1–100 psi) dependent on user setting

Ambient operating conditions:

+ Temperature: 5–45° C (41–113° F)

+ Humidity: 85% RH at 30° C non-condensing

+ Height above sea level: 2,000 meters maximum (6,562 feet)

Product classification: Installation category II; Pollution degree 2

Approvals: CE, UKCA, TÜV, RoHS, WEEE, China RoHS
