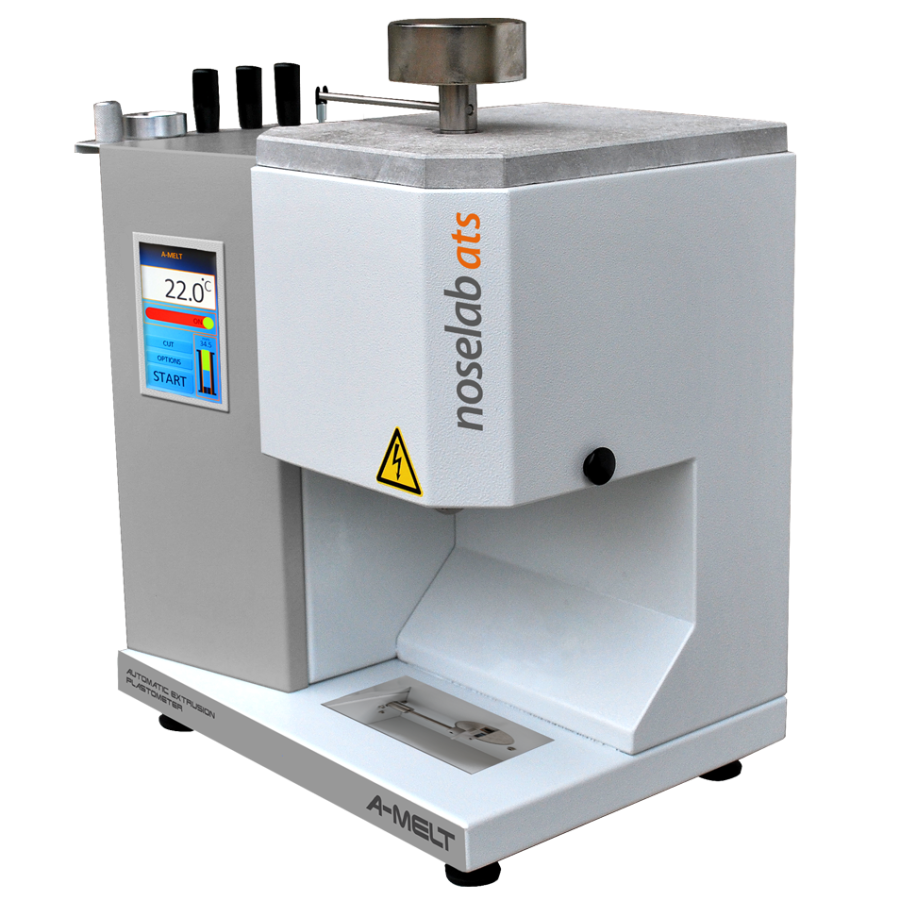

Metal frame and case painted with epoxy resins
Built-in rack for accessories
5” TOUCH TFT digital screen, microprocessor controlled and resolution 0.1°C for temperature setting and data input
Heating system by dual resistance
Operating temperature range 50 to 400°C
Thermal stability within ±0.2°C in the testing area
Test chamber Ø 9.55 mm, made of steel (52/55 HRC)
Piston Ø 9.474 mm, height of the pressing part 6.35 mm, made of steel (60/62 HRC), overall weight 325 g, complete with weight support head and flag’s arm
Die internal Ø 2.095 mm, height 8 mm, made of steel (60/62 HRC)
The instrument is equipped with an electromechanical device for the cutting of the extruded material, controlled by timer which operates the blade either automatically (at preset intervals as per ASTM D1238) or operating manually
End of test mode moving (mm) or timed (sec)
The microprocessor acquires and processes the data and determines up to 50 acquisitions automatically, and the results MVR, MFR, Dev.STD
Set of 4 adjustable feet for instrument levelling, assembled
Control mirror, assembled
Standard Tools
Sample loading funnel
Pressing tool for compressing the material in the test chamber
Die cleaning tool
Test chamber cleaning tools (3 different shapes)
General
USB interface to PC
Power supply 230V, single phase, 50/60Hz, 0.5 kWA
Dimensions (WxDxH) mm 420x330x530
Weight approx. 30 kg
