Sample supporting system
n. 1 110 mm stainless steel rod having Ø 10 mm
n. 5 150 mm Ø rings + n. 2 supports
n. 2 double clamps + n. 2 supporting clamps
Gas burner ribbon type
500 mm long ribbon type propane gas burner with three lines of holes
Complete with Venturi mixer, support, safety igniter
Flame safety device with piezoelectric igniter
Temperature measurement device
n. 2 K-type stainless steel sheathed thermocouples 1,5 mm with differential reader

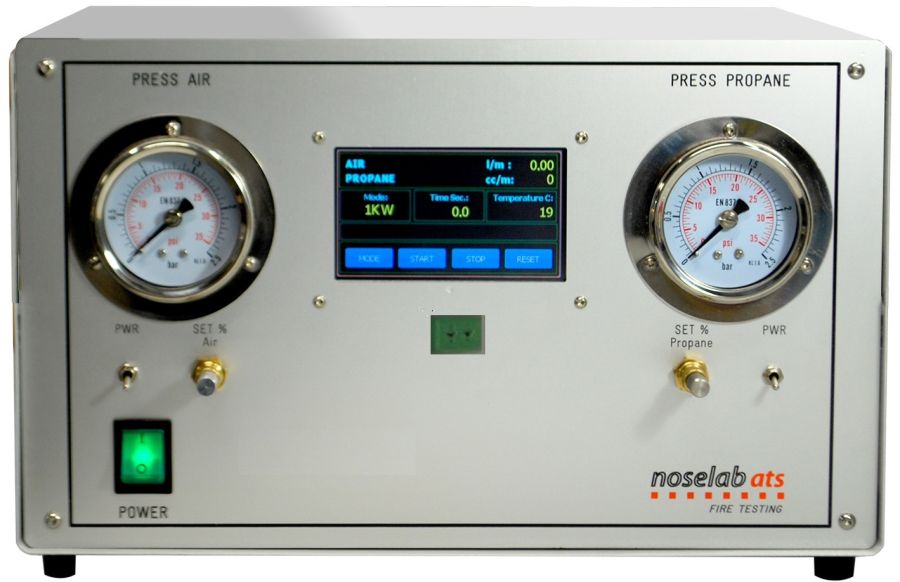

Control device for flow rate
Mass flowmeter for propane gas flow 5 l/min, precision ±0,25
Mass flowmeter for air flow 80 l/min, ±5
n. 2 pressure gauges suitable for measurements in the range 0 / 7.5 kPa
n. 2 air and gas flow adjusting valves
Temperature measure with averaging
It is thus recommended that a standard test chamber, i.e. the design of 27 m3 volume in accordance with IEC 61034-1, be used
Supplies
Power 230 V 50Hz single phase
Propane
