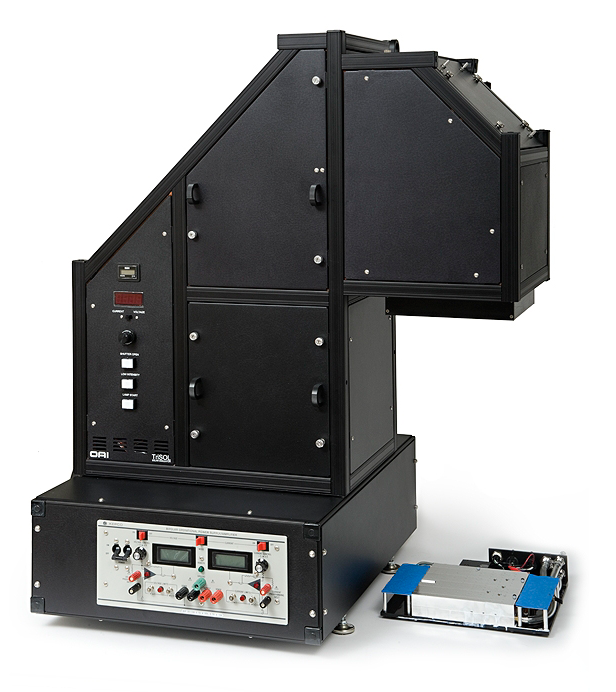

OAI CPV LA CPV Solar Simulators (~1-6Suns)

Irradiance: ~1-6Suns

Class: AAA

 Spectral: ±25%,Spatial:<2%,and Temporal:<0.5%(STI) Also available in Class A+(<±12.5%)Spectrum upgrade

Standard: IEC 60904-9,JIS C8912,and C8933,and ASTM E927

Beam Size(cm x cm): 15.6 x 15.6(~6Sun)

Lamp/Wattage: Xe Short Arc 4.0KW

Incidence Angle: Half angle <±1.0˚

Working Distance: ~22inch

Filters Options: AM 1.5G,AM1.5D,AM 1.0,AM 1.1 and Other Filters

Spectral Match Options: 350-1800nm

Power Reduction: 80%-120% Control of Power Supply to Reduce Power

Shutter Speed: 50ms to Open and 50ms to Close

Exposure and Shutter Control: I-V Software Allows Control of Exposure Time>100ms,and Number of Times Shutter Opens and Closes for a Measurement

Safety: UL 60950
