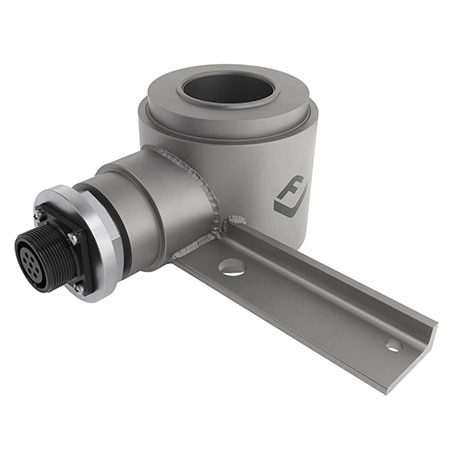

OMEGA 2X-003025 Flintec CC1 Compression Load Cell with Hermetic Sealing (50 klbf)

Height: 3.23 in

Weight: 2.54 kg

Materials: 17-4 PH Stainless Steel, Glass, Stainless Steel

Force Type: Compression

Hysteresis: ≤ ± 0.05% %*RO

Non-Linearity: ≤ ± 0.05% %*RO

Repeatability: ≤ ± 0.02% %*RO

Safe Overload: 200%*Emax

Load Cell Type: Through Hole

Outer Diameter: 3.27 in

Supply Voltage: 5 to 15 Vdc

Input Resistance: 800 ± 50 Ω

Electrical Output: 2 mV/V

Enclosure Ratings: IP68

Output Resistance: 700 ± 0.5 Ω

Calibration Option: NIST

Load Cell Capacity: 50 klbf

Zero/Balance Error: ≤ ± 1%*RO

Electrical Connection: Molex 1261 Series 6-Pin Female

Insulation Resistance: ≥ 500 MΩ

Through Hole Dimension: 1.65 in

Wiring/Connector Table: 1: (-) Excitation; 2: Not connected; 3: (-) Signal; 4: (+) Excitation; 5: Ground; 6: (+) Signal

Process Temperature, Max: 65 °C

Process Temperature, Min: -25 °C

Insulation Resistance Note: 500 MΩ @ 100 Vdc

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -55 °C

Temperature Effect on Sensitivity: ≤ ± 0.036 %*RO/°C

Temperature Effect on Zero Output: ≤ ± 0.027 %*RO/°C
