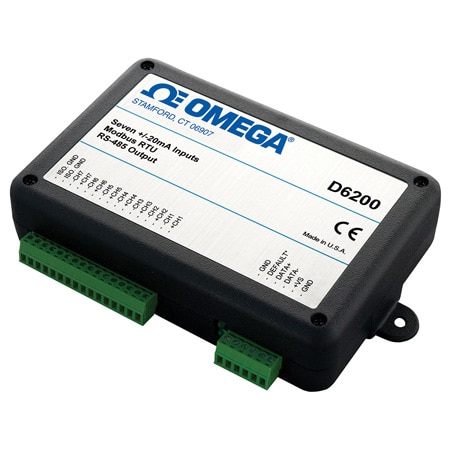

OMEGA D6200 Analog to Modbus Serial Interface Modules (Current, RS485)

Width: 152 mm

Height: 102 mm

Length: 38 mm

Memory: EEPROM

Baud Rate: 9600 to 115200

Materials: ABS

Input Type: Current

Mounting Note: 165 mm on center

Output Signal: None

Sampling Rate: 25 Hz (25 updates/second)

Data Interface: RS485

Digital Filter: Programmable

Digital Output: 5 mA minimum, 10 mA maximum

Supply Voltage: 10 to 30 Vdc

Analog I/O Note: Analog Input Note: Current: Number of Channels: 7 differential current inputs, Range: ±20 mA, Resolution ADC: 16-bit ADC, 25/20 conversions per second, Accuracy: ±0.05% of FS maximum, Span Tempco: ±50ppm/°C maximum, Voltage Drop: 2.0V maximum, Input impedance: <100 Ω (70 typical), Power Requirements: Serial = 1.4W

Conversion Rate: 25/20 conversions/sec

Impedance Input: <100 Ω (70 typical)

Pull-up Resistor: 10 kΩ

Relative Humidity: 0 to 95% RH non-condensing

Supply Power Note: Power Requirements: Serial = 1.4 W

Supply Power Type: DC

Common Mode Voltage: Input to Output at 115 Vrms, 60 Hz: 500 Vrms

Data Interface Note: Modbus RTU protocol;Configuration Method: Modbus

Output Settling Time: 0.1% FS: 1 ms

Electrical Connection: Screw Terminal

Transmission Distance: 1219 m

Temperature Coefficient: ±50 ppm/°C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -25 °C

Current Measurement Range: ± 20 mA

Number of Channels, Input: Analog: 7 DIFF

Number of Channels, Output: None

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -25 °C
