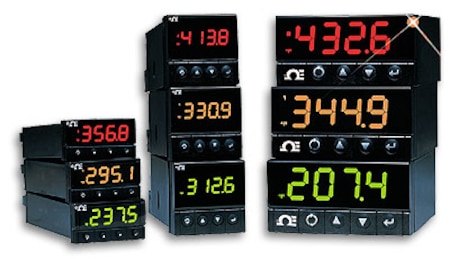

OMEGA DPIS8 1/8 DIN High Accuracy Strain Process Controllers and Meters (4 Digit LED)

Accuracy: ± 0.5 °C (± 0.9 °F)

Input Type: Thermocouple, RTD, Thermistor, Voltage, mA

Form factor: 1/8 DIN

Display Type: 4 Digit LED

Measuring Range: Type J (Iron-Constantan): -210 to 760°C, Type K (CHROMEGA®-ALOMEGA®): -270 to -160°C / -160 to 1372°C, Type T (Copper-Constantan): -270 to -190°C / -190 to 400°C, Type E (CHROMEGA®-Constantan): - 270 to -220°C / -220 to 1000°C, Type R (Pt/13%Rh-Pt): -50 to 40°C / 40 to 1768°C , Type S (Pt/10%Rh-Pt): -50 to 100°C / 100 to 1768°C, Type B (30%Rh-Pt/6%Rh-P): 100 to 640°C / 640 to 1820°C, Type C (5%Re-W/26%Re-W): 0 to 2320°C, Type N (Nicrosil-Nisil): -250 to -100°C / -100 to 1300°C, Type L (J DIN): -200 to 900°C, RTD ( Pt, 0.00385, 100, 500, 1000 Ω): -200 to 900°C, RTD ( Pt, 0.00392, 100, 500, 1000 Ω): -200 to 850°C,

Measurement Type: Current, Strain, Voltage

Number of Inputs: 1

Supply Power Type: AC/DC

Datasheet
