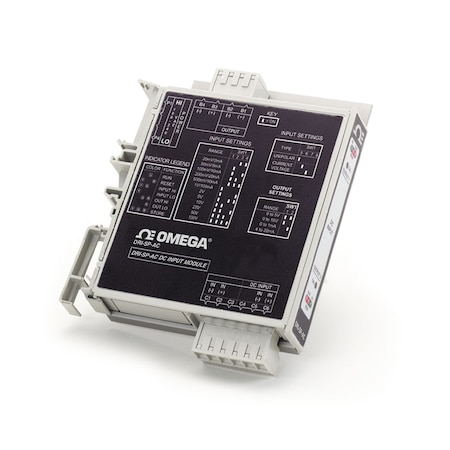

OMEGA DRI-SP-AC DIN Rail AC Powered DC Input Signal Splitter (Voltage, Current, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1V, 2V, 5V, 10V, 25V, 50V, 100V, 2 mA, 5 mA, 10 mA, 20 mA, 50 mA, 100 mA)

CMRR: 120 dB at DC, >90 dB at 60 Hz

Width: 22 mm

Height: 117 mm

Length: 105 mm

Offset: Effective Zero Offset: ≥ 90%

Weight: 227 g

Accuracy: ±2 mA, ±20 mV

Mounting: DIN Rail Mount

Approvals: CE

Isolation: ≥1800 Vdc or peak AC between input, output, power and channel-to-channel

Stability: ±0.025% /°C of full scale, maximum for full-scale and zero

Standards: IEC 801-2, Level 3

Compliance: 0 to 1 mA: 7.5V, max (7.5 kΩ), 4 to 20 mA: 10V max (500 Ω)

Input Type: Voltage, Current

Wire Gauge: 22 to 12 AWG

Overcurrent: 170 mA, protected by self resetting fuse

Overvoltage: Voltage: 200V, Current: 60V

Accuracy Note: >2 mA/>20 mV Input Spans: ±0.1% of full-scale input typical, ±0.2% maximum <2 mA/<20 mV Input Spans: ±0.35% of full scale input typical, ± 0.5% maximum including linearity, repeatability and hysteresis @ 23°C

Output Detail: Voltage Output: Drive: 10 mA max

Output Signal: Current, Voltage

Response Time: 200 msec

Supply Voltage: 100 to 240 Vac

Impedance Input: Voltage: ≥100 kΩ, Current: 20 Ω

Input Range Note: Pushbutton Adjustment (Inputs >10 mV):;Inputs >10 mV:;Effective Zero Offset: ≥90%;Effective Span Turn Down: ≥90% except 20 mV/2 mA range in which 50% is max zero offset and span turndown

Number of Inputs: 2

Electrical Output: 4 to 20 mA, 0 to 1 mA

Relative Humidity: Operating: 15 to 95 %RH @ 45°C (113°F) ;Soak: 90% RH for 24 hours @ 60°C (140°F)

Supply Power Note: 100 to 240 Vac, ±10%, 50 to 400 Hz; 2.5 W max

Supply Power Type: AC

Voltage Output Range: 0 to 5V, 0 to 10V

Electrical Connection: Screw Terminal

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -25 °C

Current Measurement Range: 2 mA, 5 mA, 10 mA, 20 mA, 50 mA, 100 mA

Voltage Measurement Range: 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1V, 2V, 5V, 10V, 25V, 50V, 100V

Operating Temperature, Max: 55 °C

Operating Temperature, Min: 0 °C
