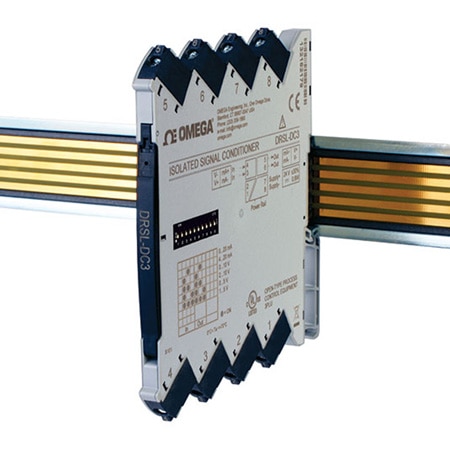

OMEGA DRSL-DC3 DIN Rail Signal Conditioner Series with Process Input (Voltage, Current, 0 to 10.25 Vdc, 0 to 20.5 mA)

MTBF: 249 yrs

Width: 6.1 mm

Height: 113 mm

Length: 115 mm

Weight: 70 g

Accuracy: ± 0.2 %

Mounting: DIN Rail 35 mm Standard, EN 60715

Approvals: CE, UL, RoHS

Isolation: 300 Vac

Span, Max: Corresponds to the presently selected DIP switch output range

Stability: Load Stability: ≤0.01% of span/100 Ω

Input Type: Voltage, Current

Wire Gauge: 26 to 13 AWG

EMC Standard: NAMUR NE 21

Installation: Pollution degree 2 and measurement/overvoltage category II

Output Value: Process

Output Detail: Current Output: Programmable Signal Ranges:0 to 20 mA and 4 to 20 mA Current Limit: ≤28 mA Voltage Output: Programmable Signal Ranges:0 to 10, 2 to 10, 0 to 5 and 1 to 5V

Output Signal: Current, Voltage

Response Time: < 7 ms

Supply Voltage: 16.8 to 31.2 Vdc

Load Resistance: Current Output: 23 mA/600 Ω max, Voltage Output:>10 kΩ min

Input Range Note: Current Input:;Functional Range: 0 to 23 mA; Programmable Measurement Ranges: 0 to 20 mA and 4 to 20 mA;Input Voltage Drop: <1.5V;Voltage Input:; Functional Range: 0 to 11.5V/0 to 5.75V; Programmable Measurement Ranges: 0 to 5V, 1 to 5V, 0 to 10V, 2 to 10V ;Input Resistance: ≥500 kΩ

Number of Inputs: 2

EMC Immunity Note: Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span

Electrical Output: 0 to 20.5 mA

Enclosure Ratings: IP20

Noise Calibration: >60 dB

Power Consumption: 0.8 W, Internal - max 0.65 W

Relative Humidity: 0 to 95% RH (non-condensing)

Supply Power Type: DC

Response Time Note: Response Time (0 to 90%, 100 to 10%): <7 ms

Voltage Output Range: 0 to 10 Vdc

Screw Terminal Torque: 0.5 Nm

Temperature Coefficient: <±0.015%

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Current Measurement Range: 0 to 20.5 mA

Voltage Measurement Range: 0 to 10.25 Vdc

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -25 °C

Calibration Temperature, Max: 28 °C

Calibration Temperature, Min: 20 °C
