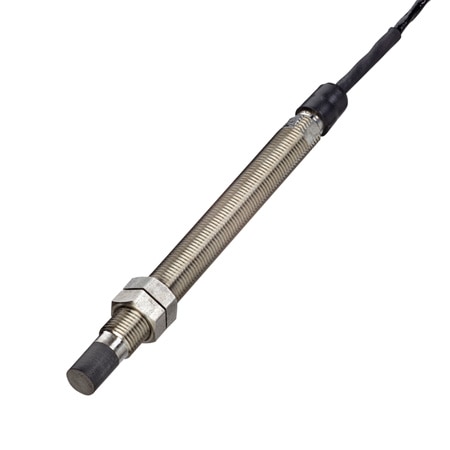

OMEGA IN-081/4/070/50/0 B&K Vibro Non-Contacting Integrated Displacement Sensor (Displacement Measurement)

Weight: 120 g

Cable Type: Insulated Shielded

Sensitivity: -8 mV/μm

Applications: Rotor Speed, Shaft Displacement, Shaft Vibration

Cable Length: 5 m

Output Detail: Signal-Voltage : USIG = UB + 2 V;Signal current : Imax = 15 mA;Noise : < 1 mVss ( ... 10 kHz);Source resistance, dynamic : < 5 Ω;RLoad : > 1 k Ω;

Sensor Length: 70 mm

Housing Length: 2.76 in

Supply Voltage: -18 to -30 Vdc

Linearity Error: ±2%

Transducer Type: Displacement Measurement

Housing Diameter: 0.334 in

Measurement Note: Eddy current Mesurment Relative Shaft Vibration, Relative Shaft Displacement

Measurement, Max: 1.5 mm

Measurement, Min: 0 mm

Electrical Output: 0 to Ub + 2 V

Enclosure Ratings: IP54

Power Consumption: 20 mA

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 110 °C

Operating Temperature, Min: 0 °C

Thermal Effect on Span error, Max: < ± 5 % at room temperature + 22 °C < ± 10 % in operating temperature range
