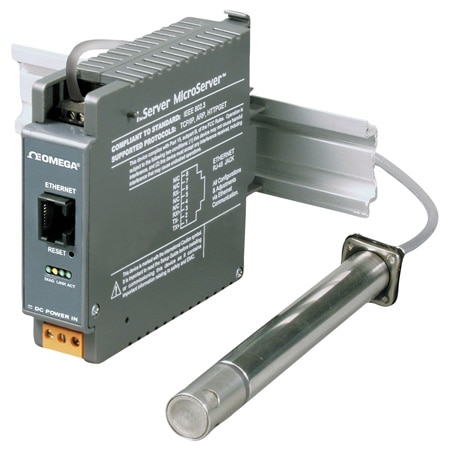

OMEGA ITHX-D3 DIN Rail Mount Temperature and Humidity Virtual Chart Recorder (124 °C, 0 to 100% RH, Screw Terminal, DIN rail mount)

Width: 4.53 in

Height: 0.99 in

Length: 3.54 in

Weight: 0.68 lb

Software: OPC Server; macro for data logging in Excel program; compatible with Windows® operating systems

Approvals: CE, FCC-B

Hysteresis: ± 1% RH

Input Type: External

Form factor: DIN rail mount

Probe Style: Industrial Probe

Sensor Type: Screw Terminal

Cable Length: 10 ft

Probe Length: 5 in

Accuracy Note: Temperature: ± 0.5°C for 5 to 45°C; up to ± 1.5°C for -40 to 5°C and 45 to 124°C, Accuracy/Range at 25°C: Non-Condensing: 10 to 90%: 2.75% RH, 5 to 10% and 90 to 95%: ± 3%, 0 to 5% and 95 to 100%: ± 4%

Configuration: Internal Web UI

Logging Modes: Fixed interval

Non-Linearity: ± 3%

Repeatability: ± 0.1%

Response Time: Temperature: 5 to 30 sec, RH: 8 sec

Data Interface: Ethernet

Probe Diameter: 0.63 in

Supply Voltage: 10 to 32 Vdc

Measurement Type: Relative Humidity, Temperature

Supply Power Note: 10 to 32 Vdc switching power supply (sold separately)

Supply Power Type: DC

Response Time Note: Temperature: 5 to 30 seconds, tau 63%, RH: 8 seconds, tau 63%

Data Interface Note: Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Supported Protocols:TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

RH Measurement Range: 0 to 100% RH

Temperature Accuracy: ± 0.5 °C

Electrical Connection: Stripped Leads

Cable Temperature, Max: 125 °C

Cable Temperature, Min: -40 °C

Temperature Resolution: 0.1 °C

Storage Temperature, Max: 125 °C

Storage Temperature, Min: -40 °C

Temperature Repeatability: ± 0.1 °C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Relative Humidity Accuracy: ± 1.5 °C

Temperature Measurement, Max: 124 °C

Temperature Measurement, Min: -40 °C
