Width: 0.67 in
Height: 0.75 in
Length: 0.27 in
Linearity: ± 0.1%
Materials: Stainless Steel, Aluminum
Force Type: Compression, Tension
Hysteresis: ± 0.1%
Cable Length: 5 ft
Overload, Max: 300% FS
Repeatability: ± 0.05%
Safe Overload: 150% FS

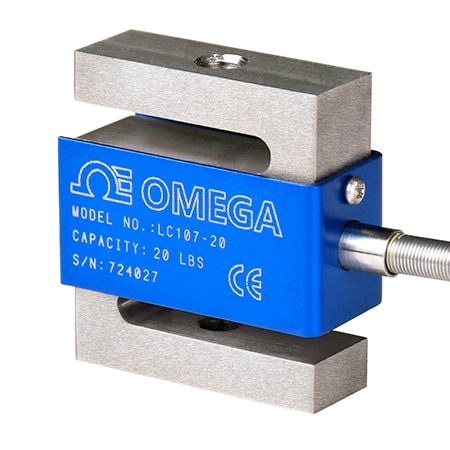

Load Cell Type: S-beam
Supply Voltage: 5 Vdc
Electrical Output: 2 mV/V
Enclosure Ratings: IP40
Supply Power Note: 5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum
Calibration Option: 5 POINT NIST
Load Cell Capacity: 5 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: ± 0.009% FSO/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Electrical Connection: Cable
Process Temperature, Max: 71 °C
Process Temperature, Min: 15 °C
Operating Temperature, Max: 93 °C
Operating Temperature, Min: -40 °C
