Width: 0.95 in
Height: 3 in
Length: 1.9 in
Weight: 0.9 lb
End Rod: REC-012M
Linearity: ± 0.03%
Materials: 17-4 PH Stainless Steel, Aluminum
Force Type: Compression, Tension
Hysteresis: ± 0.02%
Wire Gauge: 24 AWG
Load Button: LBC-012
Cable Length: 20 ft
Overload, Max: 500% FS
Repeatability: ± 0.01%
Safe Overload: 500% FS

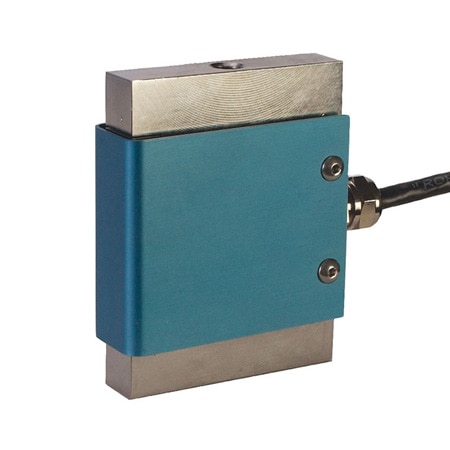

Load Cell Type: S-beam
Supply Voltage: 10 Vdc
Creep in 20 min: ± 0.03%
Bridge Resistance: 350 Ω
Electrical Output: 3 mV/V
Enclosure Ratings: IP67
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 750 lbF
Zero/Balance Error: ± 1%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)
Thermal Span Effect: ± 0.0014% rdg/°C
Thermal Zero Effect: ± 0.0027% FS/°C
Through Hole Thread: 1/2"-20 UNF
Electrical Connection: Cable
Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output
Process Temperature, Max: 65 °C
Process Temperature, Min: -18 °C
Operating Temperature, Max: 65 °C
Operating Temperature, Min: -18 °C
