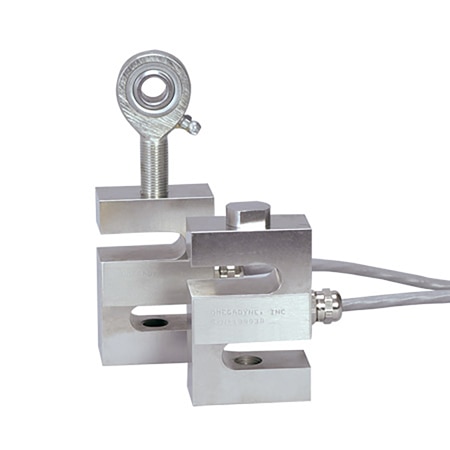

OMEGA LCM101-10K Metric Stainless Steel S-Beam Load Cells (10000 kgf)

Width: 38 mm

Height: 76 mm

Length: 108 mm

Weight: 2 kg

End Rod: MREC-M24M

Linearity: ± 0.03%

Materials: 17-4 PH Stainless Steel

Force Type: Compression, Tension

Hysteresis: ± 0.02%

Wire Gauge: 20 AWG

Load Button: MLBC-M24

Cable Length: 15 ft

Overload, Max: 300% FS

Repeatability: ± 0.01%

Safe Overload: 150% FS

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Input Resistance: 350 ± 10 Ω

Electrical Output: 3 mV/V

Output Resistance: 350 ± 10 Ω

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 10000 kgf

Zero/Balance Error: ± 1%

Thermal Span Effect: 0.0018% FSO/°C

Thermal Zero Effect: 0.0018% FSO/°C

Electrical Connection: Cable

Full Scale Deflection: 0.02 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 17 °C

Operating Temperature, Max: 93 °C

Operating Temperature, Min: -40 °C
