Height: 70 mm
Linearity: ± 0.15%
Materials: Stainless Steel
Force Type: Compression, Tension
Hysteresis: ± 0.1%
Cable Length: 0 ft
Overload, Max: 300% FS
Repeatability: ± 0.05%
Safe Overload: 150% FS

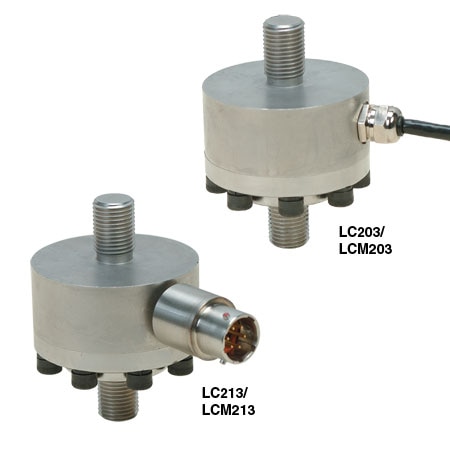

Load Cell Type: In-line
Outer Diameter: 50.8 mm
Supply Voltage: 10 Vdc
Input Resistance: 350 Ω min
Mating Connector: MIL-26482-I 10-6S
Electrical Output: 2 mV/V
Enclosure Ratings: IP65
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.01
Load Cell Capacity: 500 N
Zero/Balance Error: ± 2%
5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)
Thermal Span Effect: 0.009% FSO/°C
Thermal Zero Effect: 0.006% FSO/°C
Electrical Connection: N/A
Full Scale Deflection: 0.003 in
Wiring/Connector Table: Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 107 °C
Operating Temperature, Min: -46 °C
