Height: 50 mm
Approvals: FM
Linearity: ± 0.1%
Materials: Stainless Steel
Base Plate: LCM412-TP350
Force Type: Compression
Hysteresis: 0.001
Non-Linearity: 0.001
Overload, Max: 300% FS
Repeatability: 0.0005
Safe Overload: 150% FS

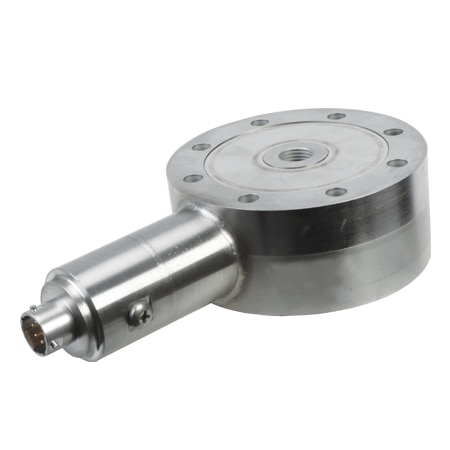

Load Cell Type: Pancake
Outer Diameter: 102 mm
Supply Voltage: 10 to 28 Vdc
Input Resistance: 350 ± 10 Ω
Electrical Output: 4-12-20 mA
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 7500 kgf
Zero/Balance Error: 4 mA +10%, -2% adjustable
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: ± 0.009% rdg/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Through Hole Thread: M24 x 2.0
Additional Features 1: Potentiometers Standard
Electrical Connection: M12 4 pin Female
Electrical Output Note: Two Directions Output
Wiring/Connector Table: Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 75 °C
Operating Temperature, Min: -40 °C
