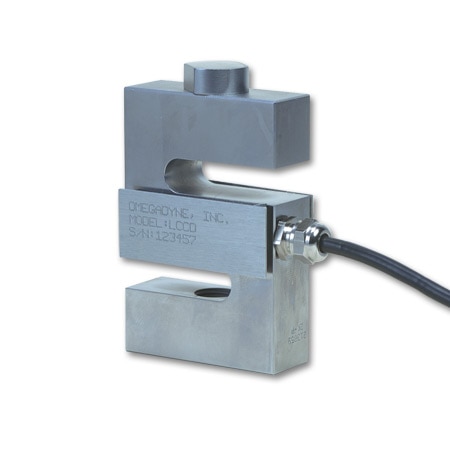

OMEGA LCMCD-2K Metric, IP67 Environmentally Protected S-Beam Load Cells (2000 kgf)

Width: 34 mm

Height: 108 mm

Length: 76 mm

Weight: 0.18 kg

End Rod: MREC-M20

Linearity: 0.0003

Materials: 17-4 PH Stainless Steel

Force Type: Compression, Tension

Hysteresis: 0.0002

Wire Gauge: 22 AWG

Load Button: MLBC-M20

Cable Length: 20 ft

Overload, Max: 300% FS

Repeatability: 0.0001

Safe Overload: 150% FS

Load Cell Type: S-beam

Supply Voltage: 10 Vdc

Creep in 20 min: ± 0.03%

Bridge Resistance: 350 Ω

Electrical Output: 3 mV/V

Enclosure Ratings: IP67

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Interchangeability: 0.0025

Load Cell Capacity: 2000 kgf

Zero/Balance Error: 0.01

Thermal Span Effect: 0.0015% rdg/°C

Thermal Zero Effect: 0.0027% FS/°C

Electrical Connection: Cable

Full Scale Deflection: 0.01 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 66 °C

Process Temperature, Min: -18 °C

Operating Temperature, Max: 66 °C

Operating Temperature, Min: -18 °C
