Length: 4.26 in
Accuracy: ± 0.5 %
Linearity: ± 0.50%
Materials: Stainless Steel
Force Type: Compression, Tension
Hysteresis: ± 0.50%
Overload, Max: ≥300% FS
Repeatability: ± 0.15%
Safe Overload: 150% FS

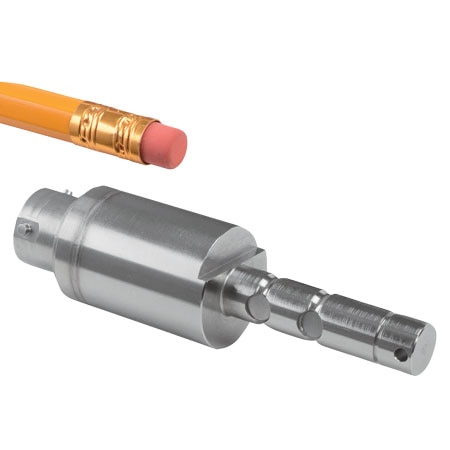

Load Cell Type: Load Pin
Outer Diameter: 0.94 in
Supply Voltage: 10 Vdc
Bridge Resistance: 350 Ω
Electrical Output: 1 mV/V
Enclosure Ratings: IP65
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: NIST
Load Cell Capacity: 12500 lbF
Zero/Balance Error: ± 1%
Thermal Span Effect: ± 0.009% FSO/°C
Thermal Zero Effect: ± 0.009% FSO/°C
Electrical Connection: MIL-26482-I 10-6P
Wiring/Connector Table: Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -53 °C
