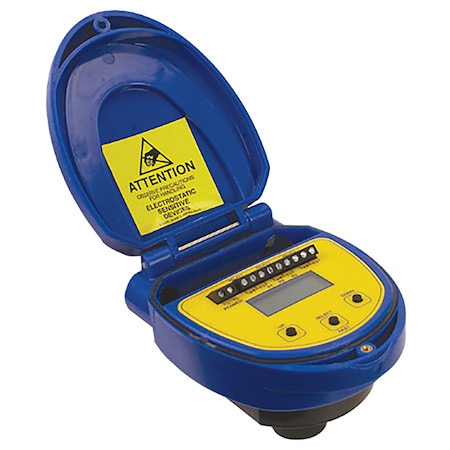

OMEGA LVCN1718 Ultrasonic Level Controller w/3 SPDT Switches (71 °C, 30 psi, 2 in, NPT Male)

Display: LCD

Deadband: 8 in

Approvals: General purpose, CE, RoHS

Beam Width: 3 in

Insulation: PVC

Switch Note: Relay 1, SPDT relays Relay 2 and 3, SPST, N.O. All commons connected together

Switch Type: SPDT NO/NC, Selectable

Repeatability: 0.25 in

Switch Rating: 1 A @ 60 or 120 Vac/Vdc

Supply Voltage: 95 to 250 Vac, 20 W @ 120 Vac

Number of Digits: 6

Enclosure Ratings: IP66, NEMA Type 4

Materials, Wetted: FKM, PVDF

Supply Power Type: AC

Media Compatibility: Oil, Solvents, Water

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Level Detection Range: 8 in to 216 in

Display Measuring Units: cm, ft, in, m, %

Operating Pressure, Max: 30 psi

Process Connection Size: 2 in

Process Connection Type: NPT Male

Process Temperature, Max: 60 °C

Process Temperature, Min: -20 °C

Operating Temperature, Max: 71 °C

Operating Temperature, Min: -40 °C
