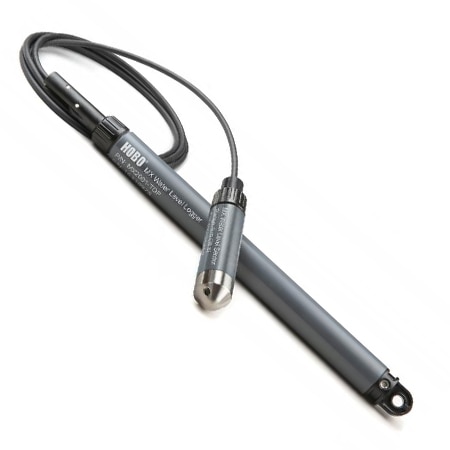

OMEGA MX2001-04 HOBO MX Bluetooth Low Energy Water Level Data Loggers (50 °C)

Length: 3.9 in

Weight: 1.9 oz

Diameter: 1 in

Approvals: CE, FCC

Materials: Stainless Steel

Input Type: Internal

Stop Modes: Button Push, When Memory is Full, Manual via remote software connection, At set date and time, At set Duration

Memory Note: Approximately 2 minutes; may take longer the further the device is from the top end of the logger

Radio Power: 1 mW

Samples,Max: ~33k Samples, Interval Selectable 1 sec to 18hrs

Start Modes: At set date and time, Button Push, Immediate Start, Next Interval

Battery life: 1 yr, typical with reading interval of 1 min

Memory Modes: stop when full, Wrap when full

Accuracy Note: Temperature Sensor Accuracy: ± 0.44°C from 0° to 50°C, Water Level Accuracy: ± 0.05% FS, 0.5 cm, Pressure Accuracy: ± 0.075% FS, 0.3 cm (0.01 ft) water

Configuration: HOBOmobile® app Android, iOS

Logging Modes: burst, Fixed interval, multiple intervals

Pressure, Max: 145 kPa

Pressure, Min: 69 kPa

Time Accuracy: ± 1 minute/month 0° to 50°C

Data Interface: Bluetooth

Form Factor Note: "Make sure the top end is connected to the sensor end with the water level logger cable as described in Getting Started with the Logger. 2. Attach any small parts, such as bolts with nuts, before you go into the field so you don’t risk losing them in the field. 3. Lower the logger into the well or stilling well. 4. Use the Onset well cap if it is a 5 cm (2 inch) well. Otherwise, use a 1/4-inch bolt of sufficient length to span the well top or washer"

Measurement Type: Pressure, Temperature, Water Level

Enclosure Ratings: IP67, NEMA Type 6

Pressure Accuracy: ± 0.075 %

Supply Power Type: Battery

Transmission Range: 30.5 m

Data Interface Note: Mobile Device Compatibility: iOS 8.3, 8.4 & 9.0, and Bluetooth 4.0 or later Bluetooth Compatibility :Bluetooth 4.0 or later (Bluetooth Low Energy, Bluetooth Smart)

Temperature Accuracy: ± 0.44 °C

Water Level Accuracy: ± 0.075%

Additional Features 1: Submersible, Stainless Steel, 4m (13') Range

Battery Size and Type: Alkaline AAA

Number of Measurements: 2

Temperature Resolution: 0.1 °C

Water Level Resolution: <0.014 kPa

Operating Temperature, Max: 50 °C

Operating Temperature, Min: -20 °C

Temperature Measurement, Max: 50 °C

Temperature Measurement, Min: -20 °C
