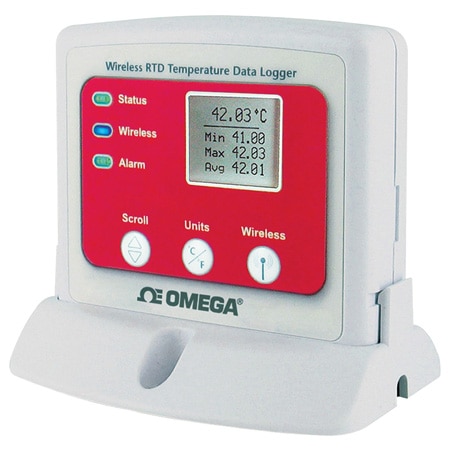

OMEGA OM-CP-RFRTDTEMP2000A Wireless RTD Temperature Data Logger with Display (850 °C, RTD, Wall Mount)

Width: 3.5 in

Height: 0.95 in

Length: 3.25 in

Weight: 4.1 oz

Display: LCD

RTD Type: 2, 3 or 4-wire 100Ω Pt RTD, α= 0.00385

Software: XP SP3/Vista/7 and 8 (32 and 64-bit)

Baud Rate: 250000

Materials: Plastic

Alarm Note: Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits, Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of dataAudible Alarm Functionality: 1 beep per second for reading alarm above/below threshold

Input Type: Internal

Calibration: Digital Calibration through Software

Data Format: °C, °F, K, Ω, °R

Form factor: Wall Mount

Samples,Max: 21504 Samples, Interval Selectable 1 Sec to 24 hrs

Sensor Type: RTD

Start Modes: Delayed Start, Immediate Start

Battery life: 4 yr, typical with reading interval of 1 min

Memory Modes: Yes

RF Frequency: 2.45 GHz

Configuration: Omega Data Logging Software, Windows PC

RH Resolution: 0.001

Response Time: Temperature: 10 min

Time Accuracy: ± 1 minute/month

Band Frequency: 2.405 to 2.475 GHz

Data Interface: Wireless, USB

Calibration Date: Automated

Measurement Type: Temperature

Pulse Resolution: ≤10 µS

LED Functionality: Green LED blinks every 5 seconds to indicate unit is logging, Blue LED blinks every 15 seconds to indicate unit is in wireless mode, Red LED blinks every 1 second to indicate alarm condition

Output Power, Max: +0dBm

RF Frequency Note: 2.45GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication

Relative Humidity: 0 to 95% RH non-condensing

Supply Power Note: Ultralife 9V lithium battery included; user replaceable

Response Time Note: Temperature: 10 min free air

Band Frequency Note: ISM band 2.405 to 2.475 GHz operation (channels 11 through 25) @ 250 kbps data rate

Data Interface Note: USB to mini USB, 250,000 baud for standalone operation or OM-CP-RFC1000-EXT/ OM-CP-RFC1000-EXT-EUR/OM-CP-RFC1000-IP69K required for wireless operation

Pressure Resolution: 0.02 mbar

Calibration Accuracy: Temperature: ± 0.05 °C

Battery Size and Type: Li-ion, 9V

Number of Measurements: 1

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Temperature Measurement, Max: 850 °C

Temperature Measurement, Min: -200 °C
