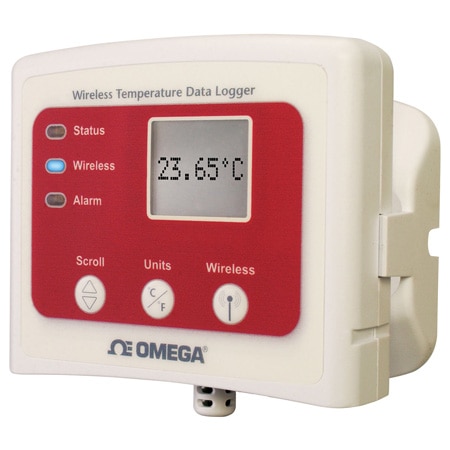

OMEGA OM-CP-RFTEMP2000A Wireless Temperature Data Logger with Display (60 °C, Wall Mount)

Width: 3.5 in

Height: 0.95 in

Length: 3.25 in

Weight: 4.1 oz

Display: LCD

Software: XP SP3/Vista/7 and 8 (32 and 64-bit)

Baud Rate: 250000

Materials: Plastic

Alarm Note: User configurable audible, on-screen, email and text (SMS) alarms, Alarm Delay: A cumulative alarm delay may be set in which the device will activate the alarm (via LED) only when the device has recorded a user specified time duration of data, Audible Alarm Functionality: 1 beep per second for reading alarm above/below threshold

Input Type: Internal

Calibration: Digital Calibration through Software

Data Format: °C, °F, K, °R

Form factor: Wall Mount

Samples,Max: 32256 Samples, Interval Selectable 1 Sec to 24 hrs

Sensor Type: N/A

Start Modes: Immediate Start

Battery life: 5 yr, typical with reading interval of 1 min

Memory Modes: Yes

RF Frequency: 2.45 GHz

Configuration: Omega Data Logging Software, Windows PC

Response Time: Temperature: 10 min

Time Accuracy: ± 1 minute/month

Band Frequency: 2.405 to 2.475 GHz

Data Interface: Wireless, USB

Calibration Date: Automated

Measurement Type: Temperature

LED Functionality: Green LED blinks every 5 seconds to indicate unit is logging, Blue LED blinks every 15 seconds to indicate unit is in wireless mode, Red LED blinks every 1 second to indicate alarm condition

Output Power, Max: +0dBm

RF Frequency Note: 2.45GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully bi-directional communication

Relative Humidity: 0 to 95% RH non-condensing

Supply Power Note: 9V lithium battery included; user replaceable

Response Time Note: Temperature: 10 min free air

Band Frequency Note: ISM band 2.405 to 2.48 GHz

Calibration Accuracy: Temperature: ± 0.50°C, 0 to 55°C

Battery Size and Type: Li-ion, 9V

Number of Measurements: 1

Temperature Resolution: 0.001 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Temperature Measurement, Max: 60 °C

Temperature Measurement, Min: -20 °C
