Weight: 85 g
Display: NO
Baud Rate: 9600
Calibration: UKAS traceable calibration certificate, add (-CALA)suffix to each sensor to be calibrated
Weight Note: 85 g (3 oz), without cable
Applications: Automotive, Building and Maintenance, Energy Generation and Distribution, Food and Beverage, Fuel and Gas, Heat and Energy Systems, Industrial and Manufacturing, Materials and Surfaces, Packaging and Printing
Cable Length: 1 m
Laser Output: false
Configuration: Via TSD600 touch screen, or directly via RS485 Modbus
Field of view: 2:1
Repeatability: ± 0.5%
Response Time: 240 ms
Baud Rate Note: Other configurations available upon request
Data Interface: RS485 Modbus
Optional Power: 100 to 240 Vac
Supply Current: 50 mA
Supply Voltage: 6 to 28 Vdc
Emissivity, Max: 1
Emissivity, Min: 0.2
Housing Material: Stainless Steel
Cable Length Note: 1 m (3.3') (longer lengths available to order)
Enclosure Ratings: IP65
Intrisically Safe: No
Repeatability Note: ± 0.5% of reading or ± 0.5ºC
Data Interface Note: RS485 Modbus RTU
Optional Power Note: 100 to 240 Vac, 0.3 A

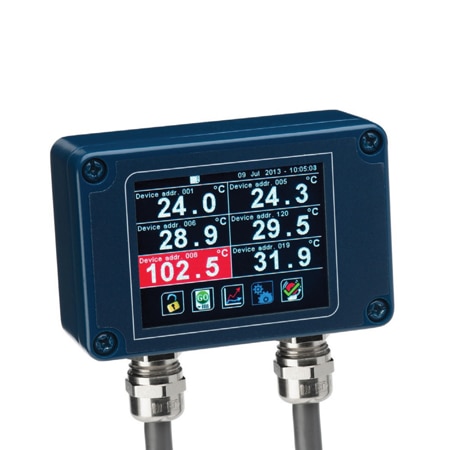

Additional Features 1: Touch Screen Display
Sensing head Mounting: 16 mm
Relative Humidity Note: 95% max non-condensing
Relative Humidity, Max: 0.95
Spectral Response, Max: 14 μm
Spectral Response, Min: 8 μm
Configuration Parameters: Averaging, Emissivity Setting, Peak/Valley Hold Processing, Reflected Energy Compensation
Process Temperature, Max: 1000 °C
Process Temperature, Min: -20 °C
Operating Temperature, Max: 120 °C
Operating Temperature, Min: 0 °C
