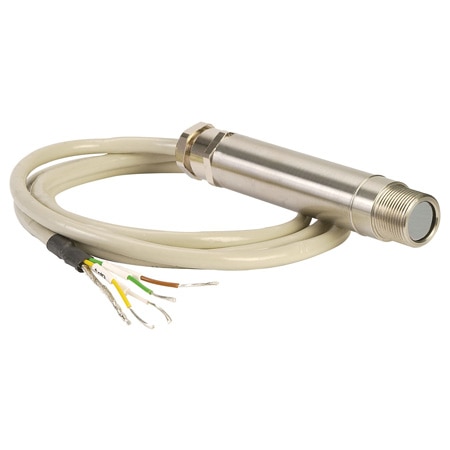

OMEGA OS301-HT-J Fixed Infrared Temperature Transmitters with a Selection of Field of Views (30:1, 500 °C, Thermocouple Type J)

Optics: 301

Weight: 95 g

Impedance: 900 Ω

Cable Length: 1 m

Field of view: 30:1

Output Detail: Thermocouple Type J

Output Signal: Thermocouple

Repeatability: ± 0.5%

Response Time: 240 ms

Housing Height: 18 mm

Housing Length: 103 mm

Sensor Voltage: 6 Vdc

Supply Voltage: 24 to 28 Vdc

Emissivity, Max: 0.95

Impedance Output: 56 Ω

Cable Length Note: 1 m (3.3') (included) longer lengths available to order

Electrical Output: Thermocouple Type J

Enclosure Ratings: IP65

Supply Power Note: 44 Vdc (28 Vdc maximum)

Repeatability Note: ± 0.5% of reading or ± 0.5ºC whichever is greater

Response Time Note: 240 ms (90% response)

Impedance Output Note: 56 Ω (voltage/thermocouple output)

Sensing head Mounting: 16 mm

Relative Humidity Note: 95% non-condensing maximum

Relative Humidity, Max: 0.95

Spectral Response, Max: 14 μm

Spectral Response, Min: 8 μm

Process Temperature, Max: 500 °C

Process Temperature, Min: 0 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: 0 °C
