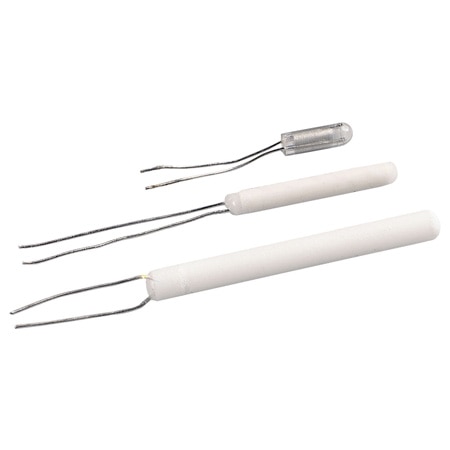

OMEGA PT-103 Cryogenic Platinum RTD Temperature Sensor (Stripped Leads, 100 Ω, 600 °C)

Insulation: Tetrafluoroethylene (TFE)

Current, Max: 0.5 mA

Sensor Length: 12.1 mm

Sensor Diameter: 1.8 mm

Current, Max Note: Higher measurement currents can be applied as long as self heating does not change the measurement value more than the needed measurement accuracy. But should not exceed 2mA for 1002 and 0.5mA for 10002.

Nominal Resistance: 100 Ω

Recommended Current: 0.3 mA

Electrical Connection: Stripped Leads

Temperature Sensor Type: RTD

Process Temperature, Max: 600 °C

Process Temperature, Min: -259.15 °C
