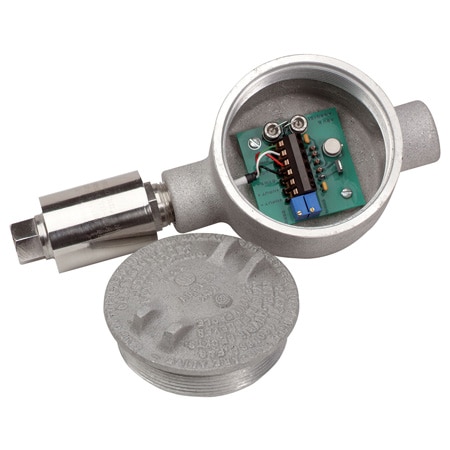

OMEGA PX02K1-750GV Pressure Transducers with Internal Shunt Resistor (Gauge, 750 psi, UNF Female, 7/16 in)

Weight: 388 g

Accuracy: ± 0.19 %

Hysteresis: ± 0.1% FSO

Output Signal: Millivolt

Pressure Type: Gauge

Pressure, Max: 750 psi

Pressure, Min: 0 psi

Accuracy Class: 0.1% to 0.25%

Burst Pressure: 3x Full Scale

Proof Pressure: 150% Full Scale

Supply Voltage: 24 to 32 Vdc

Linearity Error: ± 0.15%

Sensing Element: 4-active-arm Strain Gauge Bridge

Mating Connector: MIL-26482-I 10-6S

Electrical Output: mV/V

Materials, Wetted: 17-4 Stainless Steel

Zero/Balance Error: 0 V ± 10% adj

Burst Pressure Note: 300% of rated pressure

Repeatability Error: ± 0.05% FSO

Sensing Element Note: 4-active-arm bridge, using thick-film strain gages in a hermetically sealed chamber

Additional Features 1: None

Electrical Connection: MIL-26482-I 10-6P

Electrical Output Note: 0 to 5 Vdc ± 10% adjustable

Process Connection Size: 7/16 in

Process Connection Type: UNF Female

Electrical Connection Note: PTIH-10-6P connector (or equal) Mating connector (sold separately), order PT06F10-6S

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -46 °C

Compensated Temperature, Max: 71 °C

Compensated Temperature, Min: 16 °C

Thermal Effect on Span error, Max: 0.003% of rdg/°F

Thermal Effect on Zero error, Max: 0.003% of rdg/°F, 0.003% of rdg/°F
