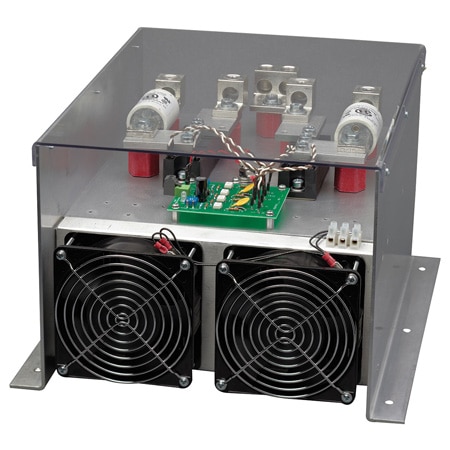

OMEGA SCR19P-H-24-250 SCR Power Controllers or Electrical Resistance Heaters 250 A Max
Manufacturer: OMEGA Model: SCR19P-H-24-250 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Weight: 6.4 kg
Cooling: Fan cooled, requires 120 Vac control voltage
Frequency: 50 to 60 Hz
Isolation: 2500 Vac
Device Load: Resistive
Current Output: 250 A
Supply Voltage: 240 Vac
Switching Type: Phase-Angle Firing
Voltage Rating: 240 Vac, 1-phase, 1-leg control
Startup Profile: None
Number of Phases: 1
Input Control Signal: 4 to 20 mA
Display and Indications: Open SCR, Shorted
Over-Voltage Protection: Inherent built-in immunity
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
