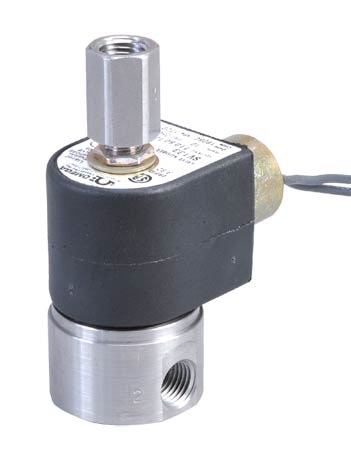

OMEGA SV133 2-Way, NO, Stainless Steel, General Purpose Solenoid Valves (0.15 gal/min, 1/4 in, NPT Male, 3/32 in, Direct Acting, Normally Open)

Weight: 500 g

Mounting: Pipe mounting, any direction

Cv Factor: 0.15 gal/min

Materials: Stainless Steel, FKM

Coil Power: 10 W

Duty Cycle: 100%

Media Type: N/A

Valve Type: Direct Acting

Orifice Size: 3/32 in

Supply Voltage: 120 Vac

Valve Position: Normally Open

Static Pressure: 1.5 times max psid

Enclosure Ratings: IP65, NEMA Type 4

Materials, Wetted: Copper, FKM, Stainless Steel

Supply Power Note: 10 W, 120 Vac coils, 50 to 60 Hz

Open Response Time: 4 to 15 ms

Close Response Time: 4 to 15 ms

Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Operating Pressure, Max: 250 psi

Operating Pressure, Min: 0 psi

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Process Temperature, Max: 116 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: -9 °C
