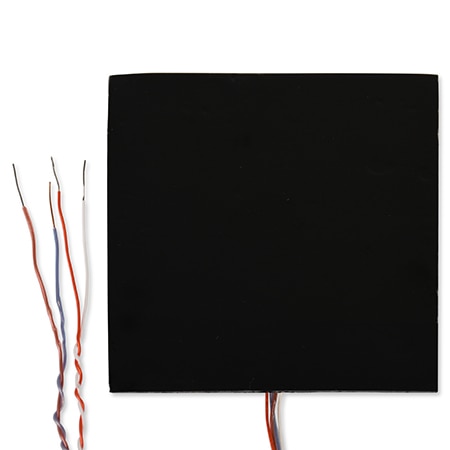

OMEGA UHFS-09 Heat Flux Sensors for Heat Transfer Measurements (Thermopile, 120 °C)

Sensing Area: 80 cm²

Sensor Width: 9.2 cm

Response Time: None

Sensor Length: 8.7 cm

Sensing Length: 6.8 cm

Heat Flux Range: ± 150 kW/m²

Number of Wires: 4

Sensing Breadth: 7.6 cm

Sensor Thickness: 1.5 mm

Total Sensor Area: 80 cm²

Nominal Sensitivity: 1500 mV/(W/cm2)

Thermal Resistivity: 1.25 K/W

Thermal Conductivity: 0.2 W/(m-K)

Encapsulation Material: Epoxy, Polyimide

Temperature Sensor Type: Thermopile

Process Temperature, Max: 120 °C

Process Temperature, Min: -20 °C

Absolute Thermal Resistance: 1.25 K/W

Absolute HFS Thermal Resistance: None

Datasheet
