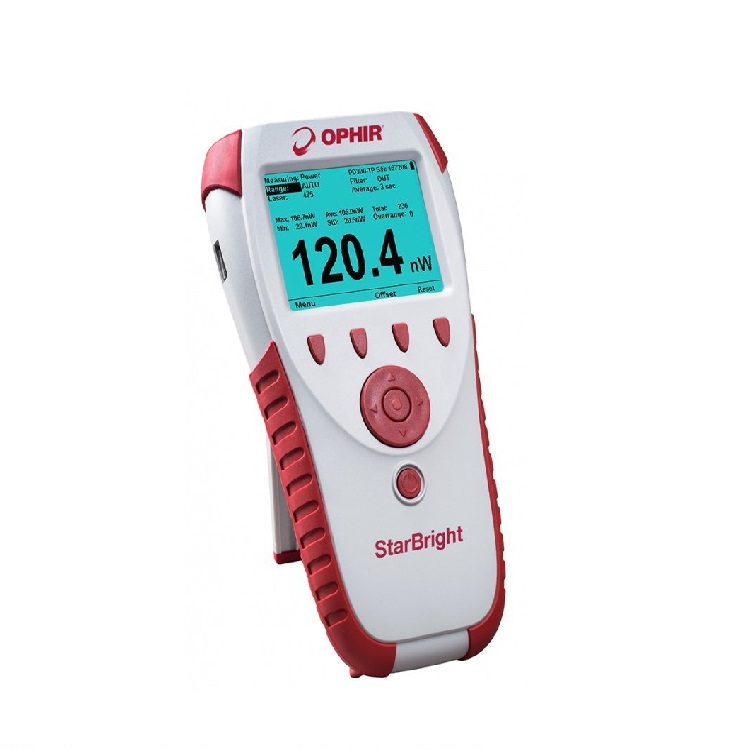

Ophir StarBright Laser Power and Energy Meter

Power Meter: High legibility 320 x 240 pixel graphics LCD. Large 16mmdigits

Features: Many screen features including power with multicolor bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more.

Outputs: USB, RS232 and 1, 2, 5 and 10 volt full scale analog output.

Case: Molded high impact plastic with optimized angle kickstand.

Size: Folds to a compact 212mm L x 114mm W x 40mm H

Battery: Rechargeable Li-ion batteries with typically 8 hours between charges. The charger can be ordered from your local distributor. The charger also functions as an AC adapter.

Data Handling: Data can be viewed on board or transmitted to PC:

On Board: Data stored to USB drive at rated up to 5000 points/s

Sensor Features: Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors (b).

Program Features: Preferred startup configuration can be set by user. User can recalibrate power, energy, response time and zero offset.
