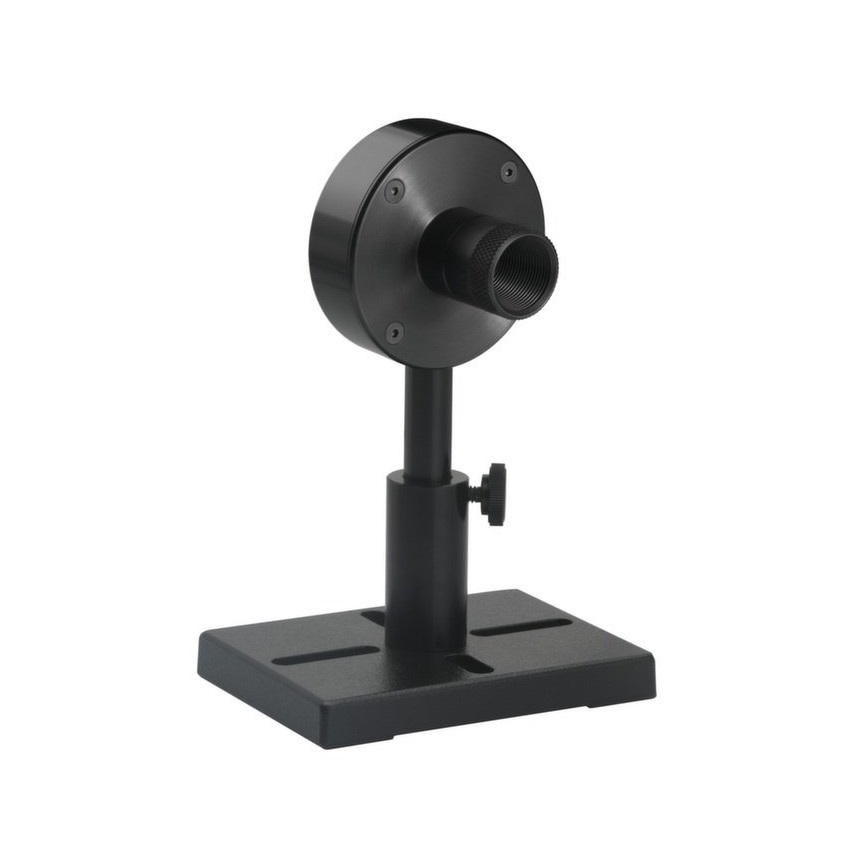

Ophir 3A-P-THz High Sensitivity Thermal Laser Sensor (15µW-3W)
Manufacturer: Ophir Model: 3A-P-THz P/N: 7Z02742 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Absorber Type: P type
Aperture: Ø12mm
Spectral Range: 0.1THz-30THz
Power Range: 15µW-3W
Energy Range: 20µJ-2J
Backscattered Power: N.A.
Dimensions: Ø70 W x 30 D (mm)
Max Pulse Energy: 2J
Max Average Power Density: 0.05kW/cm²
Response Time: 2.5 s
Max Energy Density (for <100ns): 1J/cm²
Max Energy Density (for 2ms): 1J/cm²
Max Average Power: 3W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
