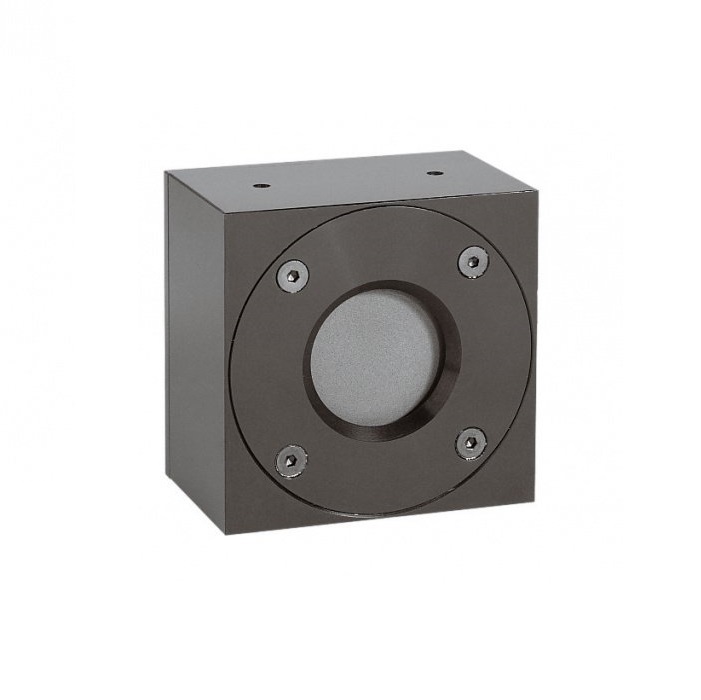

Ophir L30C-LP2-26-SH OEM Power Sensors (300mW-100W)
Manufacturer: Ophir Model: L30C-LP2-26-SH P/N: 7Z02775 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Aperture: Ø26mm
Spectral Range: 0.25-2.2µm
Power Range: 300mW-100W
Energy Range: 30mJ-2000J
Dimensions: 60 L x 60 W x 38 D (mm)
Max Average Power Density: 42kW/cm² at 100 W
Response Time: 1.5 s
Max Energy Density (for <100ns): 0.1J/cm²
Max Energy Density (for 2ms): 130J/cm²
Max Average Power: 100W heat sinked
Communication: N.A.
Compliance: CE, UKCA, China RoHS
