Flow Rate: 400 mL/min +/- 10% at 2000 meters above sea level
Technology Employed: HT PEM electrolytic cell
Output Pressure: 30-116 PSI, 2-8 bar
Purity: 99.9999% ; Oxygen < 1 ppm
Moisture: > -70°C dew point ATP at 20°C
Requirements of Demineralized Water:
Required resistivity >1 MΩ cm @25°C; ASTM Type II
Advised resistivity <10 MΩ cm @25°C; ASTM Type I
Electrical Supply: 115/230 V; +/- 10% 50-60 Hz; 180W
Protection Index: IP20
Noise : < 50 dBA
Operating Temperature : 40 °F - 95 °F (5°C - 35°C)
Environmental Humidity: max 90% without condensation
Maximum Altitude:
2000 meters above sea level
6561.68 feet above sea level
Dimensions:
Height: 18.6" (47cm)
Width: 14.9" (38cm)
Depth: 20.8" (53cm)
Weight: 67 lbs (30 kg)
Pneumatic Connections:
Hydrogen Output: G 1/8" female AISI 316
Exhaust: quick coupling for plastic pipe 4mm
Input demineralized water: flexible hose with 1/4" connection
DESCRIPTION

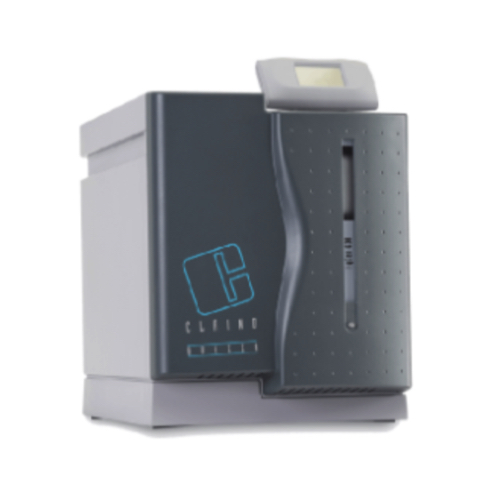

The H Series is available in three models, 200, 400, or 600 mL/min, with purity up to 99.9999%. They are designed for Carrier Gas in GC, GC-MSD, and "FAST GC" applications. The safety system features acoustic alarms, screen messages, and automatic production stoppage for gas leaks using inert gas. The H Series features a removable water tank for easy water changes and cleaning. Maintenance is easy, with low cost consumables that are easy to replace. Hydrogen is produced in proportion to consumption, with minimum gas storage inside the instrument. Parallel connection allows for a configuration of up to four stackable towers. It features a CPU with touch screen display, which can be linked to a generator using CAN-BUS. This enables monitoring of the operating status and provides access to the maintenance menu, alarm reports, and functional parameters.
